P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential 2-20
P7270I/P7270I Refresh
P7280/P7280 Refresh

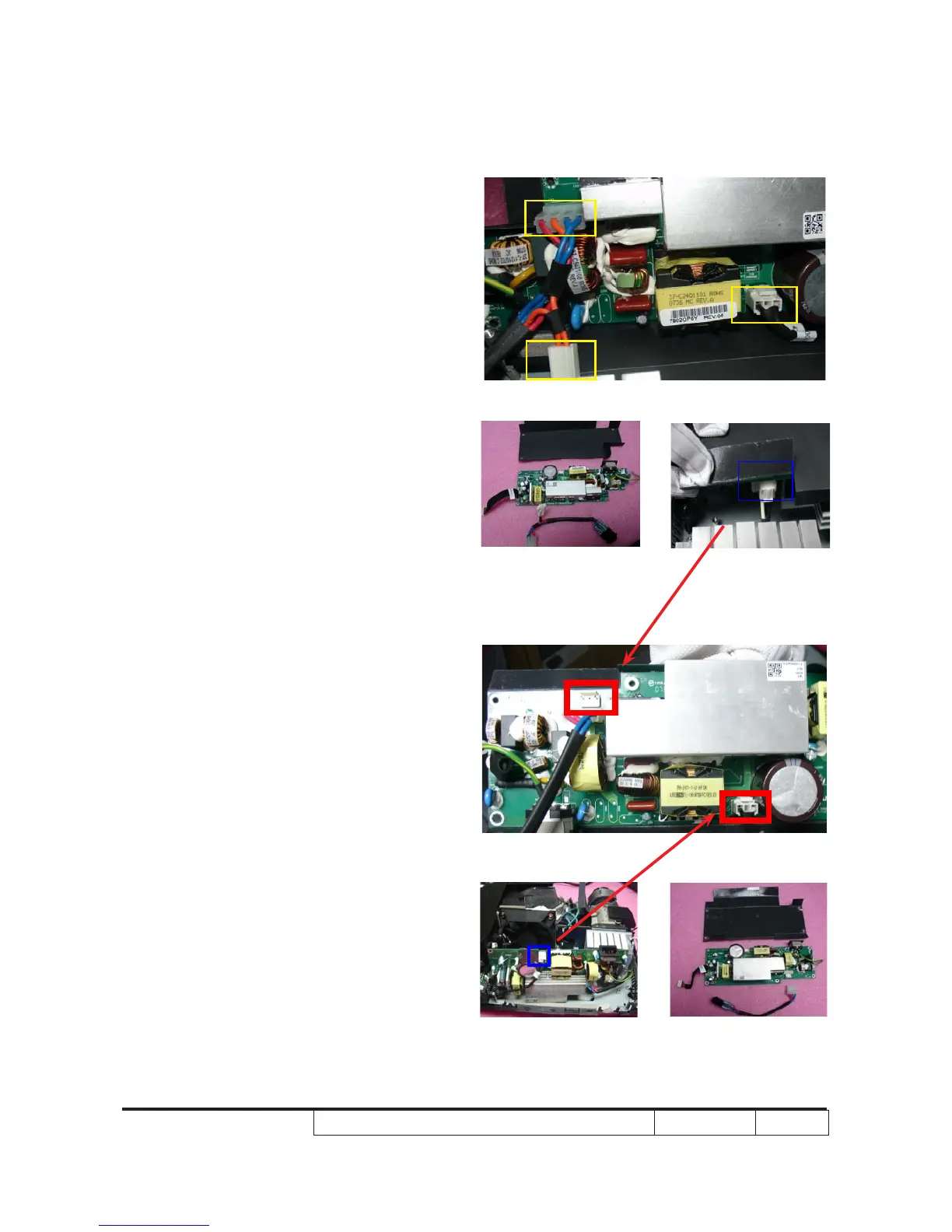

6. Unplug 3 connectors
(as yellow square / only for P7270I/P7270I
Refresh)
7. Tear off Mylar and disassemble P7270I/
P7270I Refresh LVPS Module
8. Unplug 2 connectors
(as blue square / only for P7280/P7280
Refresh)
9. Tear off Mylar and disassemble
P7280/P7280 Refresh LVPS Module
