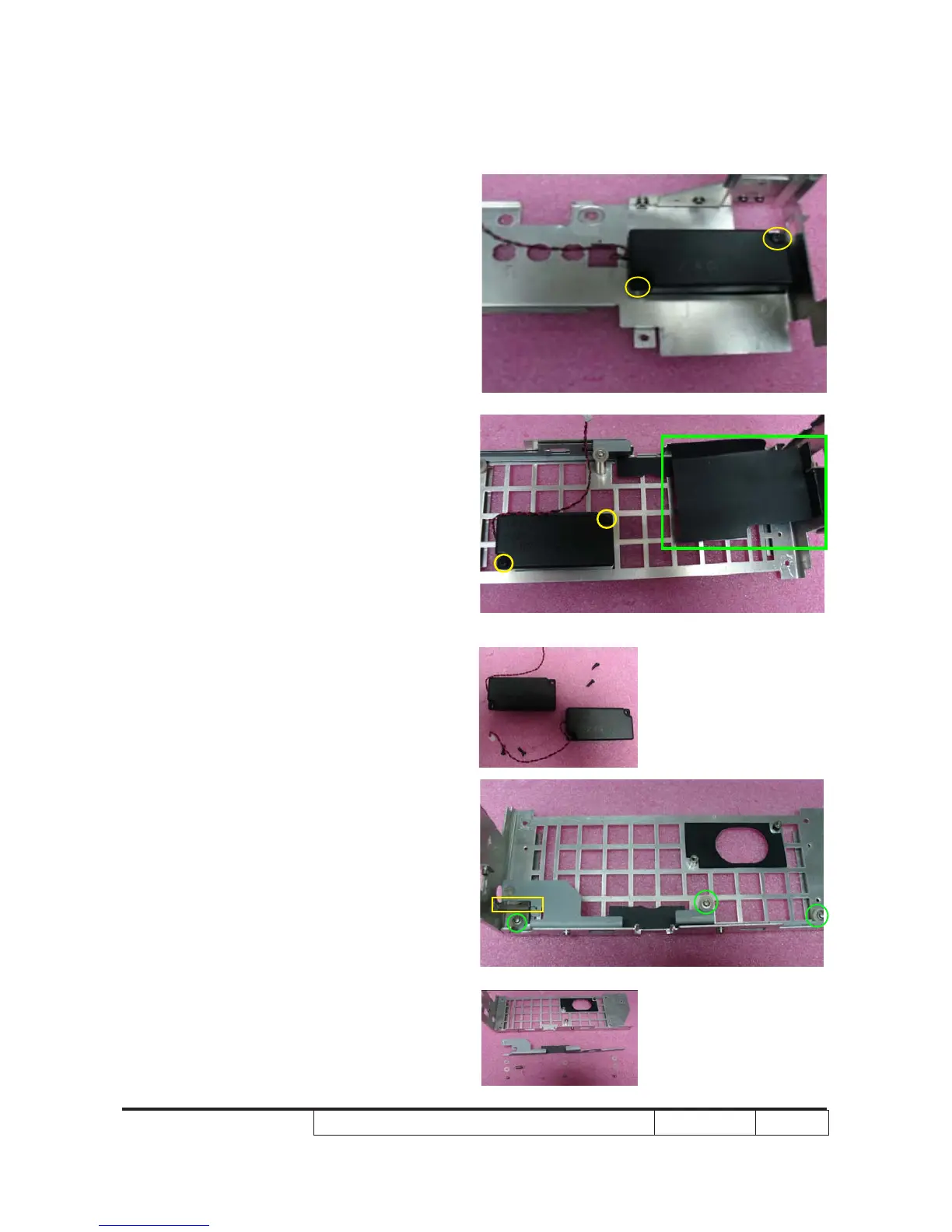

4. Unscrew 4 screws (as yellow circle) and
disassemble 2 Speakers
5. Tear off the Mylar (as green square)
6. Disassemble 1 Spring
(as yellow square)
7. Unscrew 3 screws
(as green circle)
8. Disassemble Iron Sheet from the
Shielding Module
