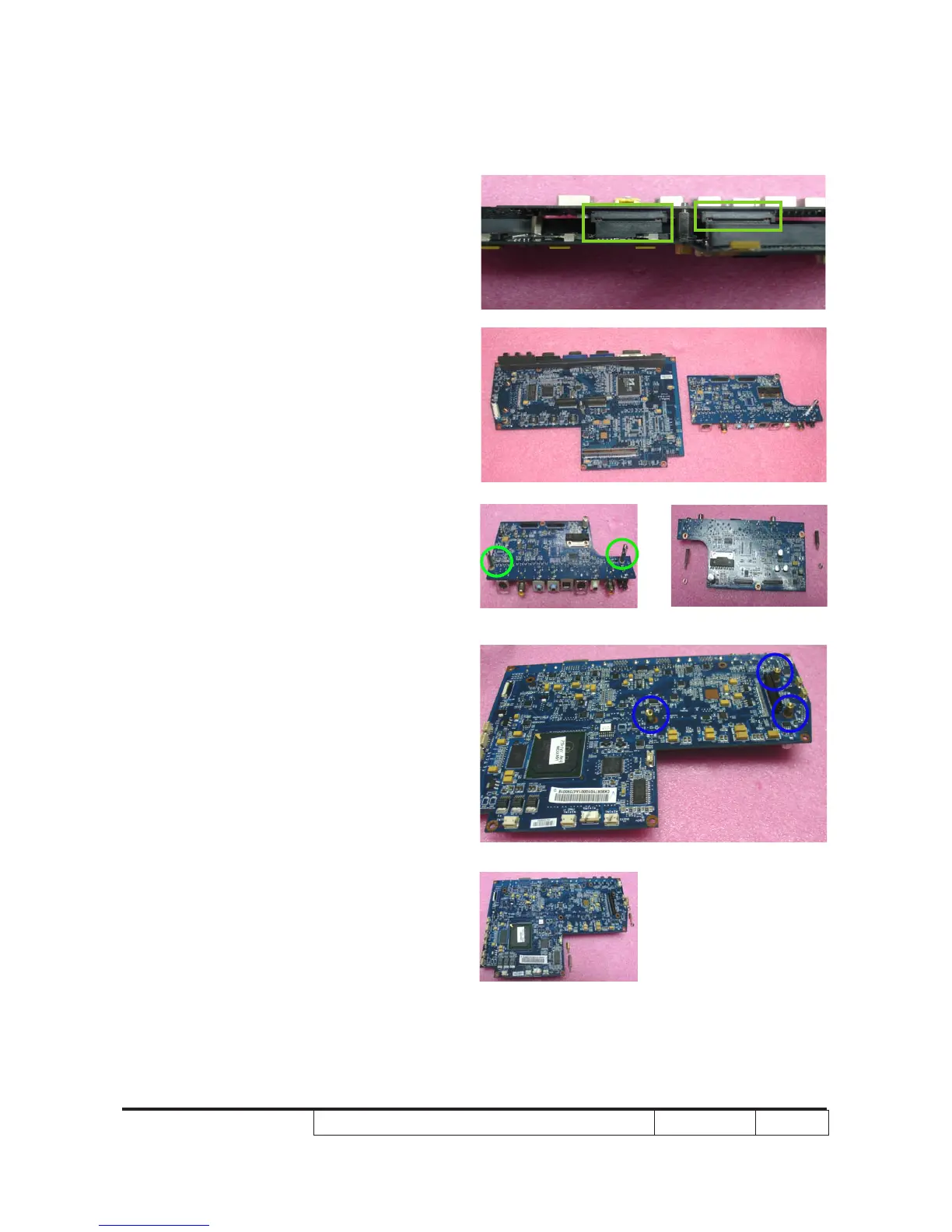

6. Unplug 2 connectors (as green square)
7. Disassemble I/O Board Module from
Main Board Module
8. Unscrew 2 Copper Holders
(as green circle)
9. Unscrew 3 Copper Holders
(as blue circle)
