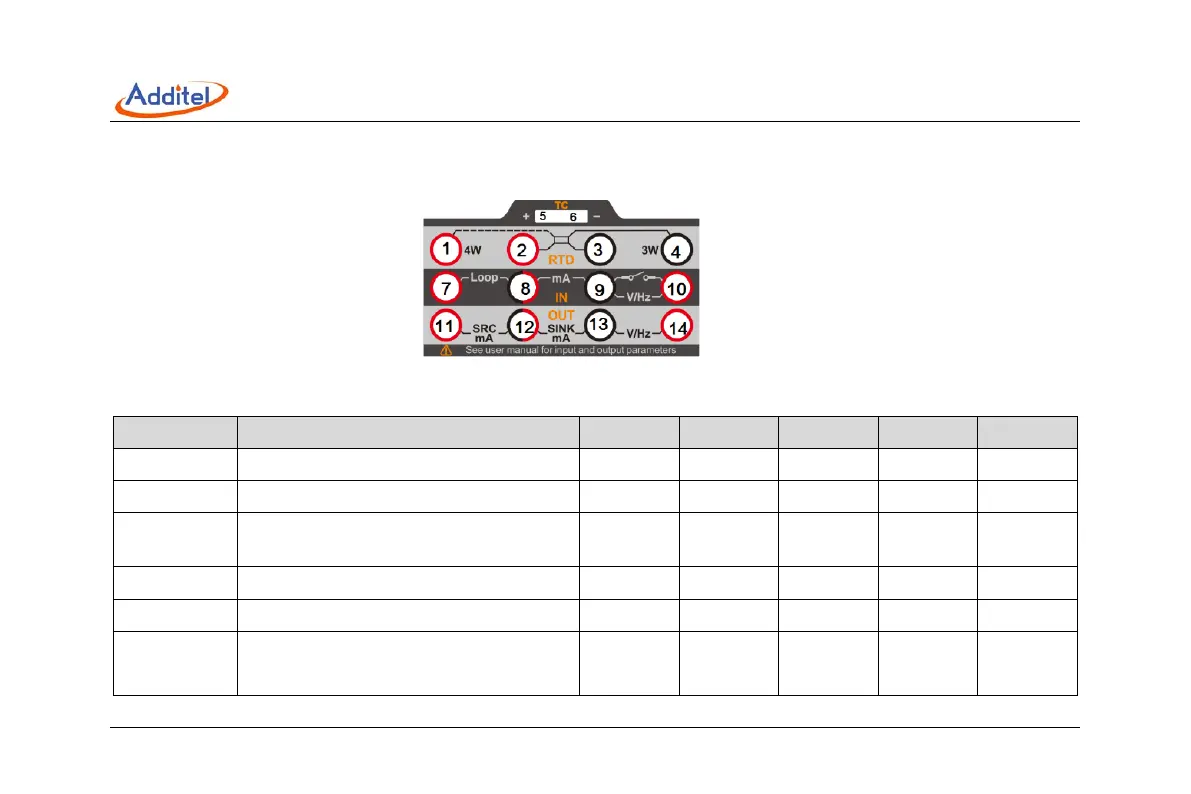

Additel 226Ex/ 227Ex
Intrinsically Safe Documenting Multifunction Process Calibrator
Input parameters, simple connection
Connection Function Ui/V Ii/mA Pi/mW Ci/nF Li/mH
J1-J4 Resistance Measuring and Analog Output 30 100 750 23 0
J5,J6 Thermocouple Measuring and Analog Output 30 100 750 23 0
J7,J9
HART (External Power supply and External
Resistance)
30 100 750 10 0
J8,J9 Current Measuring 30 100 750 1 0
J10,J9 Voltage, Frequency AND Switch Measuring 30 100 750 1 0
J7,J8
Loop Circuit Transmitter Current Measuring /
HART(Internal Power and Resistance)
30 100 750 10 0
