3. Operating Panel
3.1
ADTCNC46 Series System LCD/ Button Panel
Button panel

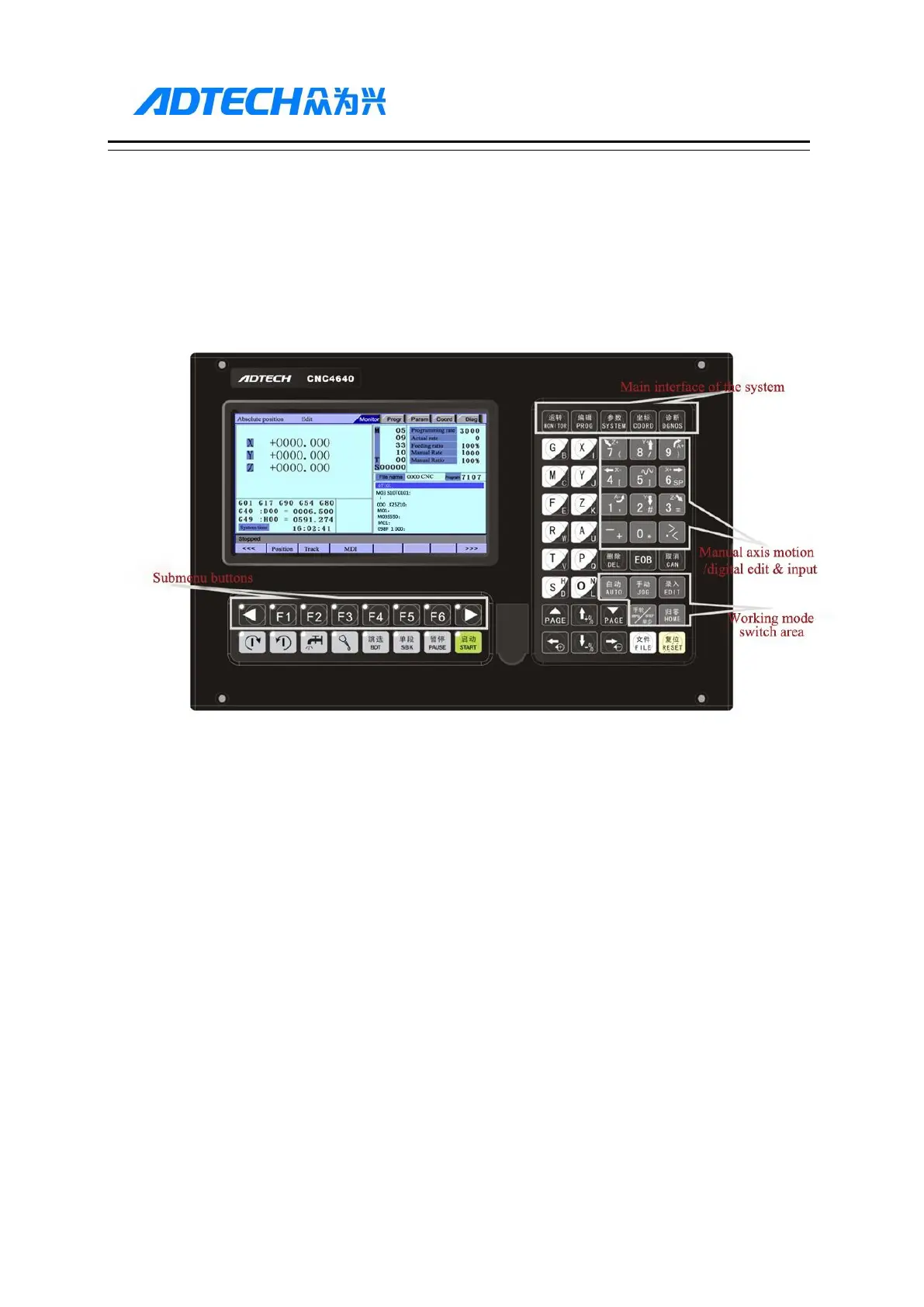

Fig. 3.1 CNC4640 Operation Panel Diagram
Note:
Press the Menu buttons to operate corresponding sub-menus.
Manual axis movement buttons and edit and input buttons are reused, and have different definitions in
different modes.
Work mode switching area is used to switch working modes of the system, and the security and system
operating experience are enhanced through different modes. Hand wheel and single-step mode are switched
through the Repeat button.
