ADTECH4 SeriesCNC Maintenance Manual
Tool magazine parameters
Tool magazine parameters collect the parameters that the tool magazine requires. The specific meaning of
the parameters should be determined by the tool magazine of the machine tool, and therefore should refer to
the instructions provided by the machine tool manufacturer.
Principal axis parameters
Principal axis parameters are the set of electrical characteristics of servo and common principal axes. The
specific application also depends on the principal axis selection of the machine tool manufacturer. The servo
parameters and axis parameters have the same meaning, and therefore please refer to the description of axis
parameters.

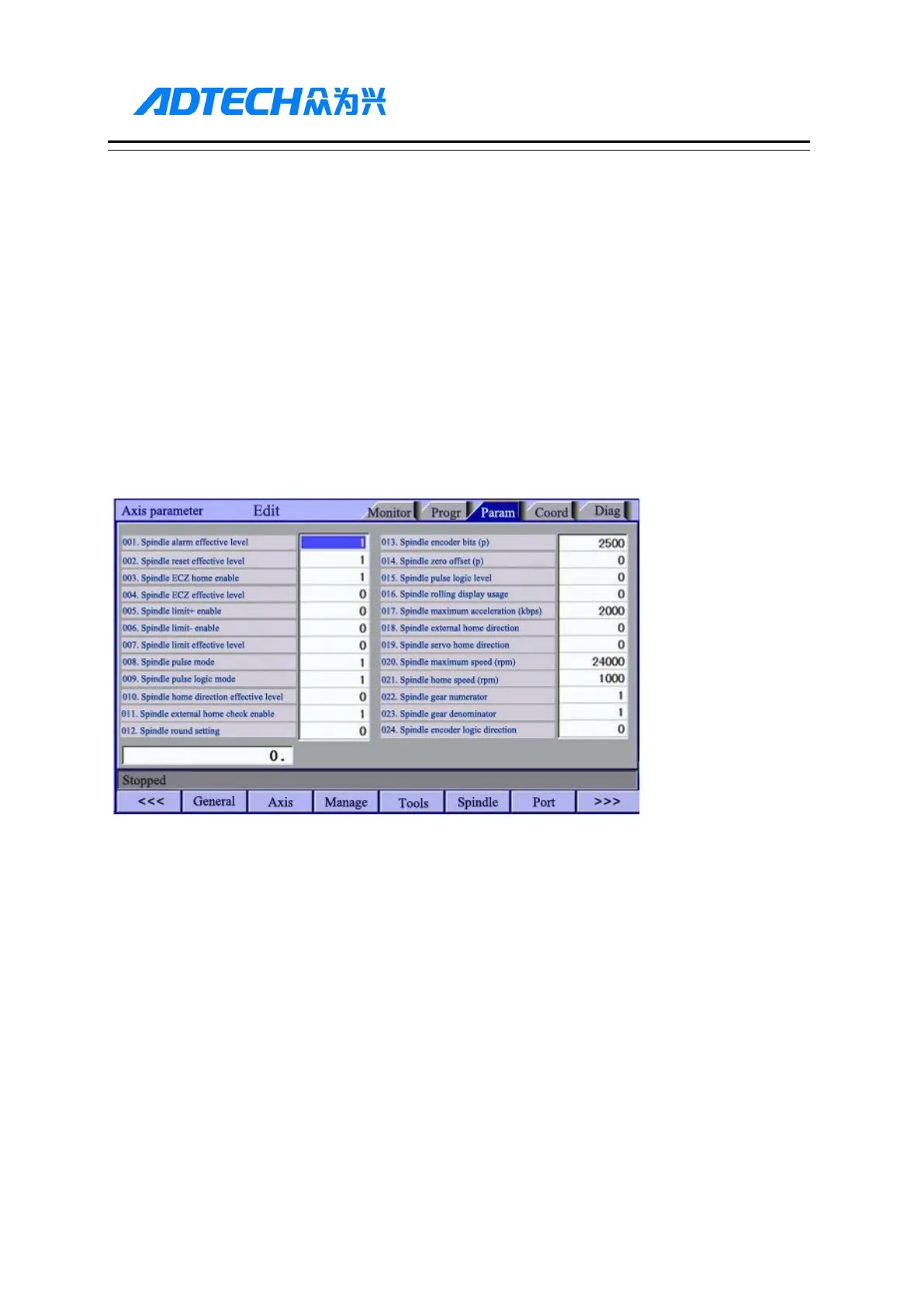

Principal axis parameter interface is shown below:
Principal Axis Parameters Interface
IO configuration parameters
IO configuration parameters are the assignment of hardware interfaces. This parameter set is the IO pin
sequence specified by the system’s IO function numbers, which will improve the system flexibility. Please
refer to System Parameters for the specific meaning of the parameters.
IO configuration parameter interface is shown below:
