Adtech ADTECH4 CNC Series - 12.2.3 Digital Output Interface

ADTECH4 SeriesCNC Maintenance Manual
20
IN51
Backup input
21
IN52
Backup input
22
IN53
Backup input
23
IN54
Backup input
24
IN55
Backup input
25
INCOM5
Input common terminal
(24v+, 12v+)

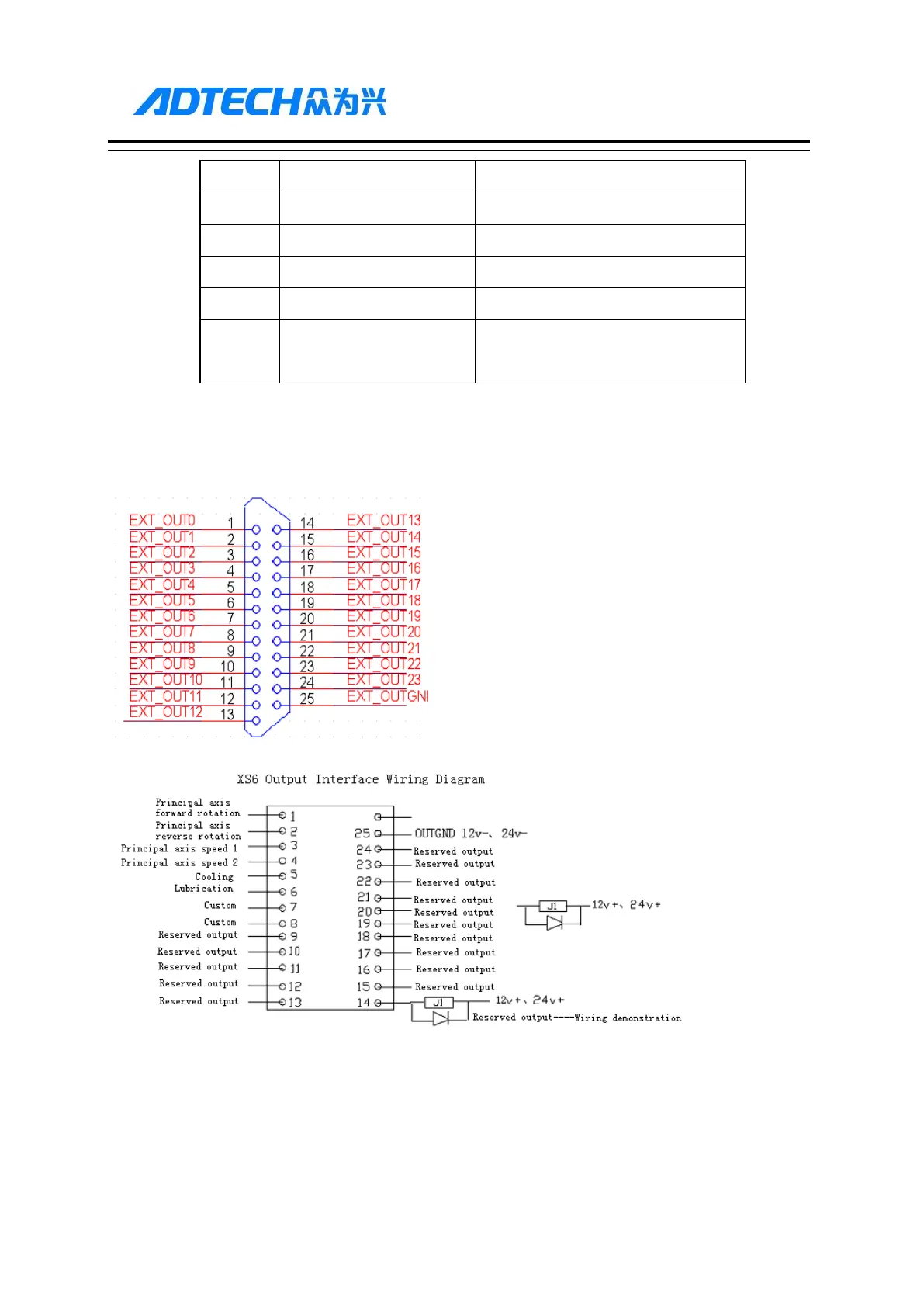

12.2.3. Digital output interface
The wiring of digital output interface follows:
