ADTECH4 SeriesCNC Maintenance Manual

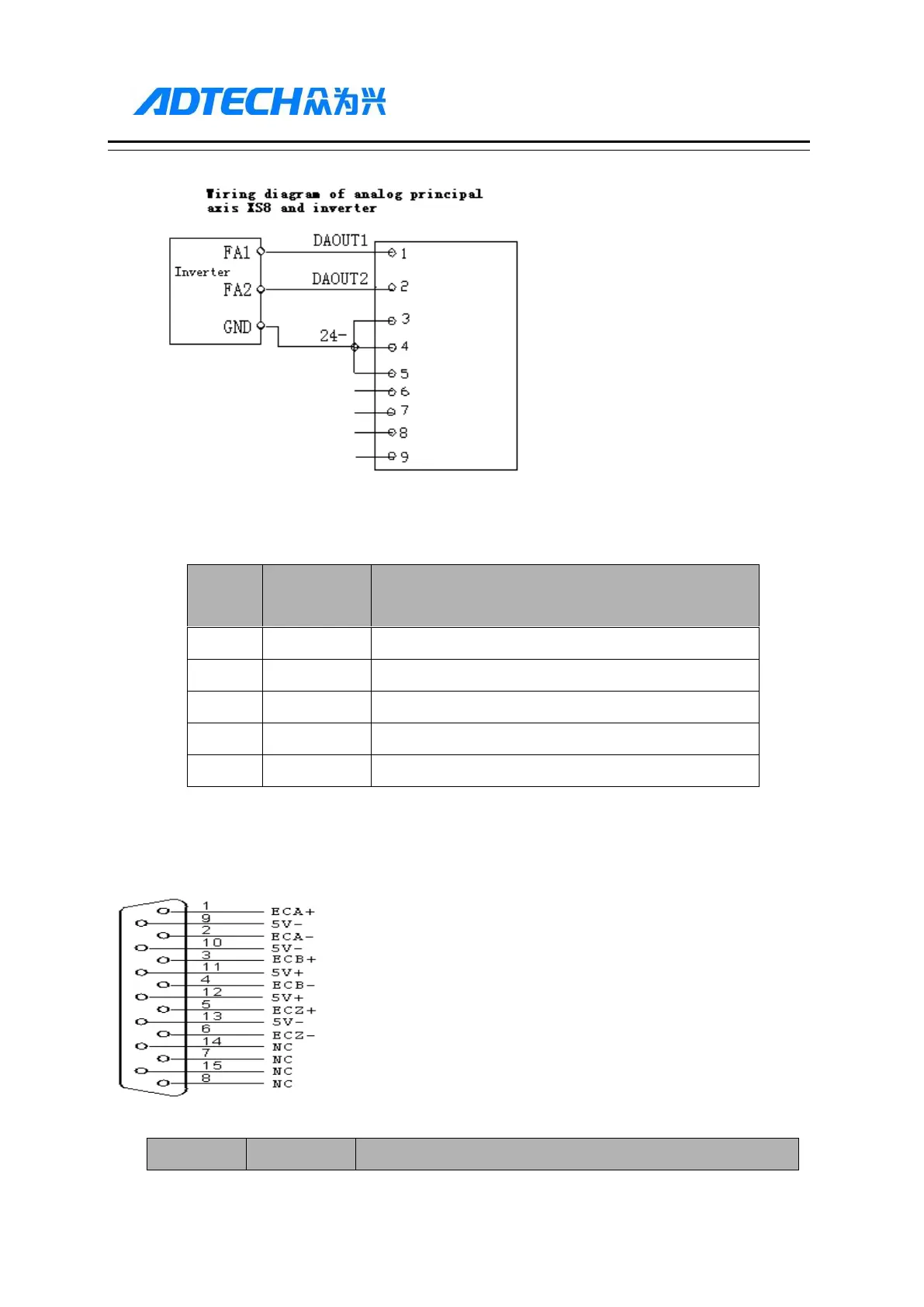

Wire
No.
Definition
Function
1
DAOUT1
Analog voltage output (0~10) V
2
DAOUT2
Analog voltage output (0~10) V
3
GND
Internal 24V power grounding
4
GND
Internal 24V power grounding
5
GND
Internal 24V power grounding
12.2.6. Principal axis encoder interface (46 series XS12, 49 series XS10)
Principal axis encoder wiring diagram (46 series XS12):
Principal axis encoder definition follows (46 series controller):
Wire No.
Definition
Function
