ADTECH4 SeriesCNC Maintenance Manual

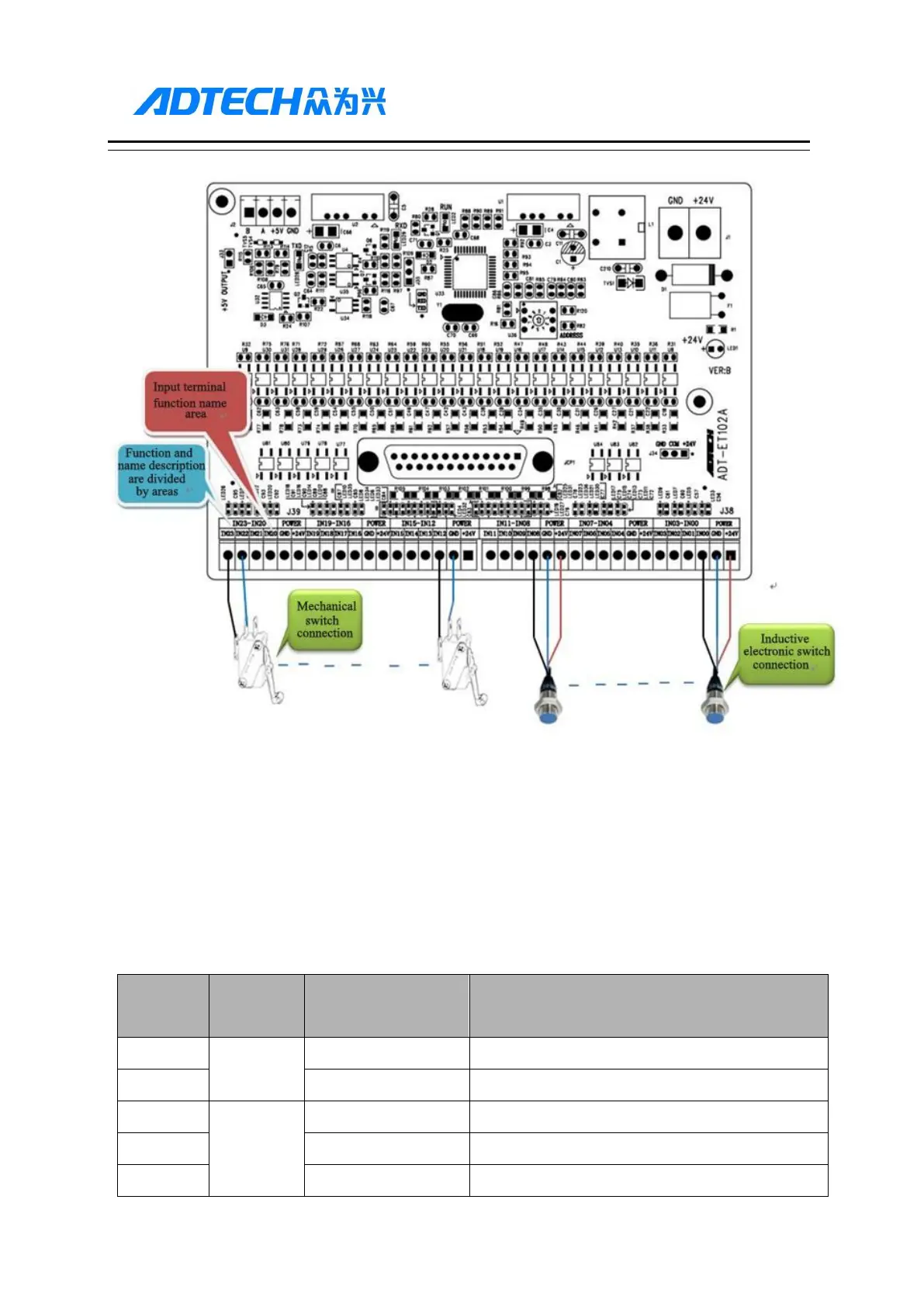

Note: The splitter terminal GND and +24V are used for power supply of external proximity sensor switch. Every four
input points share a group, and the maximum operating current of each group of power supply terminals is 200MA.
Except common terminal 24V or GND is selected for IN08-IN15 by J34, the common terminal of all other input points is
+24V, and the status of the input point inverts when all input terminals are connected to GND.
ET102A splitter function definition
Termina
l No.
Area
Port Name
Function
J38
POWER
+24V
24V power output terminal
J38
GND
24V power output GND terminal
J38
IN03-IN
00
IN00
IN00
J38
IN01
IN01
J38
IN02
IN02
