9.5 Graphic Simulation
[Track] function is to simulate NC processing program.
To enter graphic simulation interface:
Enter track interface to enable real-time track display automatically. During automatic running of the
system, the motion track is displayed in real-time. In standby mode, you can also press Preview to pre-scan the
processing file.
The shortcuts of adjusting position:
PageUp : Zoom in
PageDown : Zoom out
→←↑↓: Shift position; the shift unit is the set pixel unit

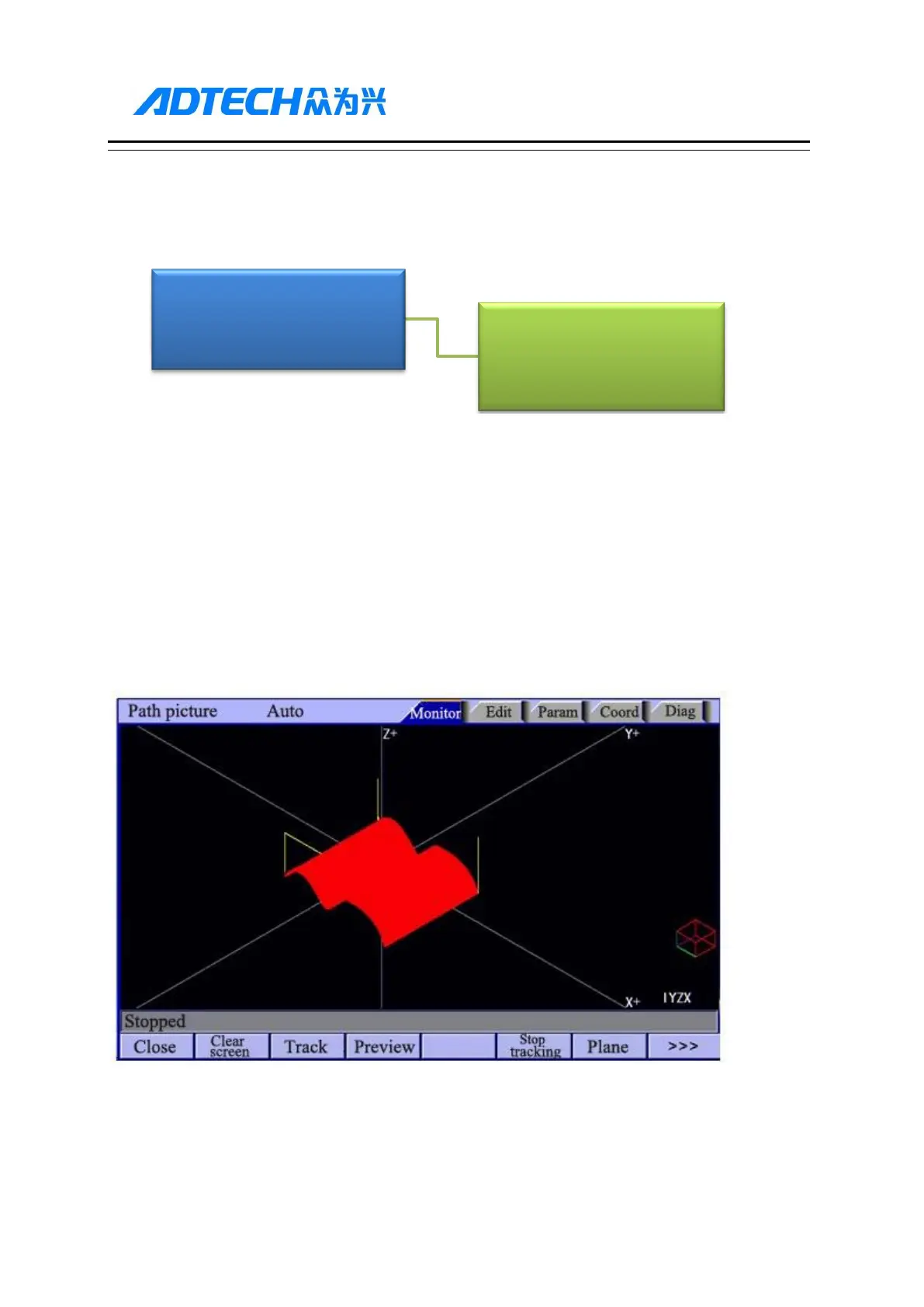

Graphic simulation interface is shown below:
Graphic Simulation Interface
