Tool Compensation Parameter Setting Interface
9.8 M series workpiece coordinate system setting interface
The coordinates interface shows coordinate system info, including setting, coordinate system, centered,
and tool regulator. In the main interface, press [Coordinate] to enter coordinate system.
Workpiece coordinate system
Display workpiece coordinate system, i.e. the offset of workpiece home position and machine tool home
position, Totally six basic workpiece coordinate systems (G54~G59) and nine extension coordinate systems
(G591~G599) are available.
To enter workpiece coordinate system interface:

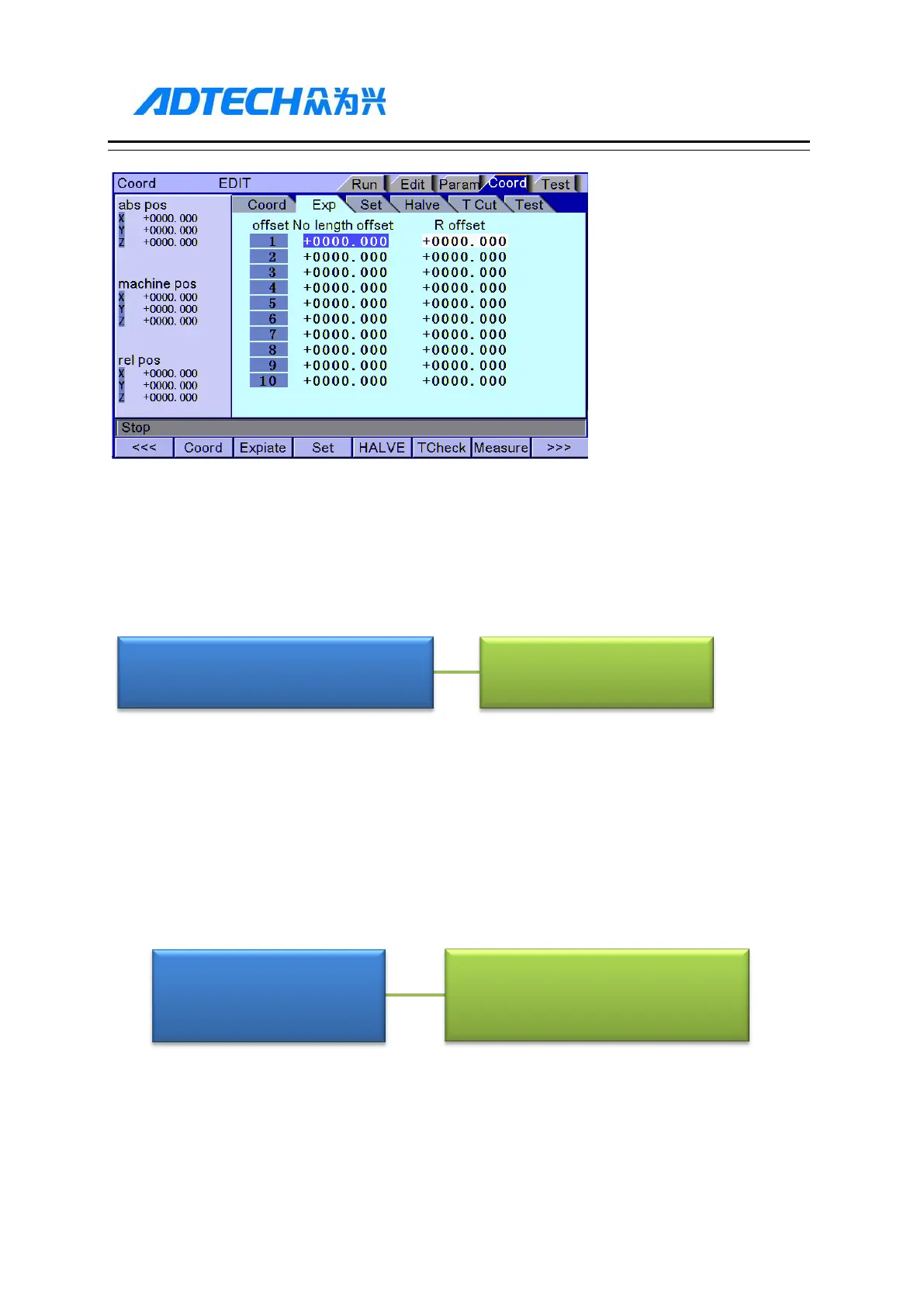

The workpiece coordinate system interface is shown below:
M series [coordinates]
[Coordinate
settings]
[Coordinates]
[Coordinate
settings]
