ADTECH4 SeriesCNC Maintenance Manual

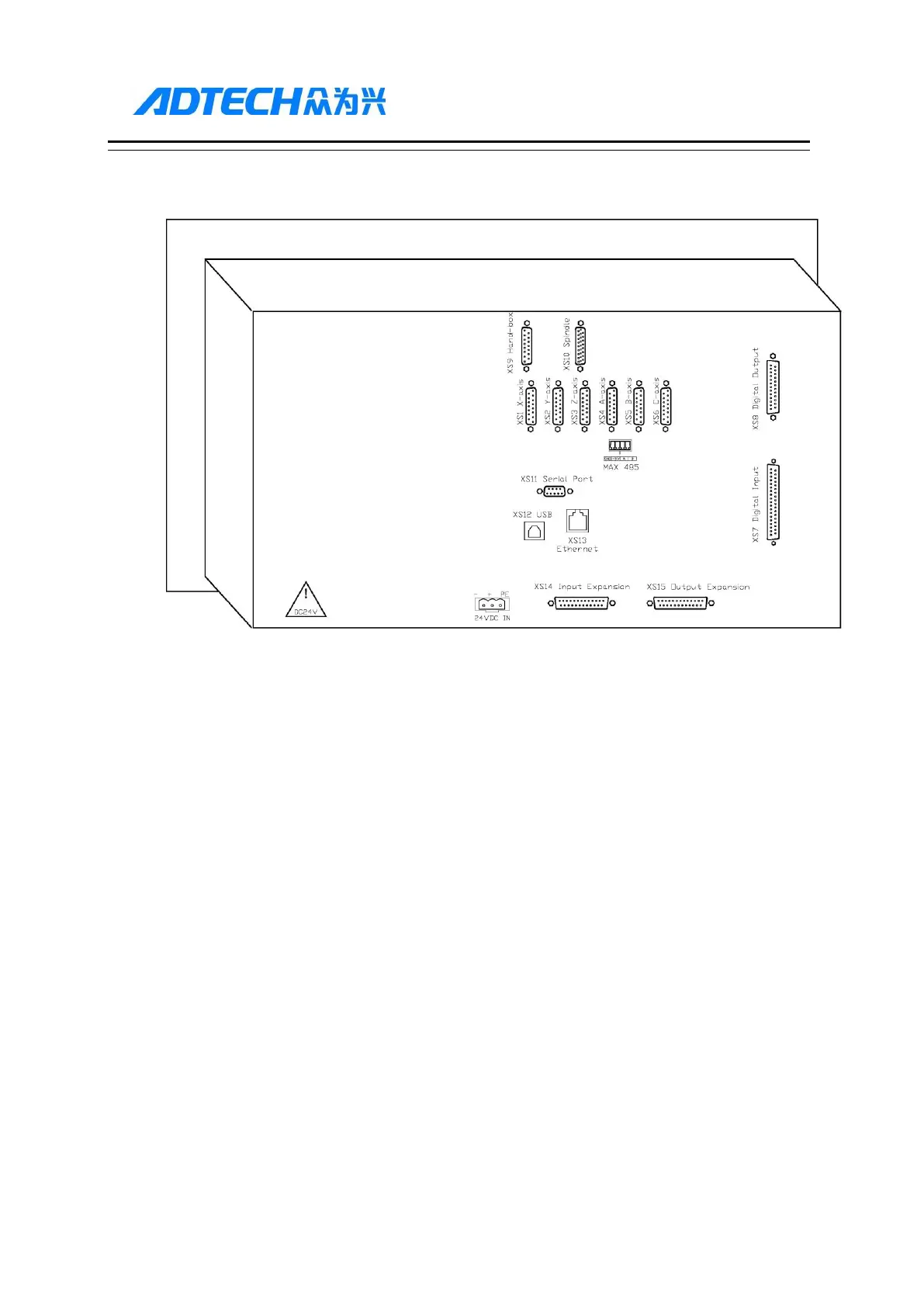

XS1 (X axis), XS2 (Y axis), XS3 (Z axis), XS4 (A axis), XS5 (B axis), XS6(C axis):
15-core D-pin socket connects to step motor drive or digital AC servo drive
(2) XS7 machine tool input interface:
37-core D-pin socket inputs signals for every axis limit and other switching quantity
(3) XS8 machine tool output interface:
25-core D-pin socket outputs signals for switching quantity
(4) USB and serial port exchange files between PC and CNC49 controller and realize other functions.
(5) CNC49 controller uses 24V DC power supply, and the internal power consumption is about 5W.
(6) XS9 hand wheel interface:
15-core D-pin socket connects to hand wheel
(7) XS10 principal axis:
26-core D-pin socket connects to principal axis inverter
(8) XS14 machine tool extended input interface:
25-pin D-type socket is switching quantity extended input signal
(9) XS15 machine tool extended output interface:
25-pin D-type socket is switching quantity extended output signal
