Advanced Automated Osmometer User’s Guide

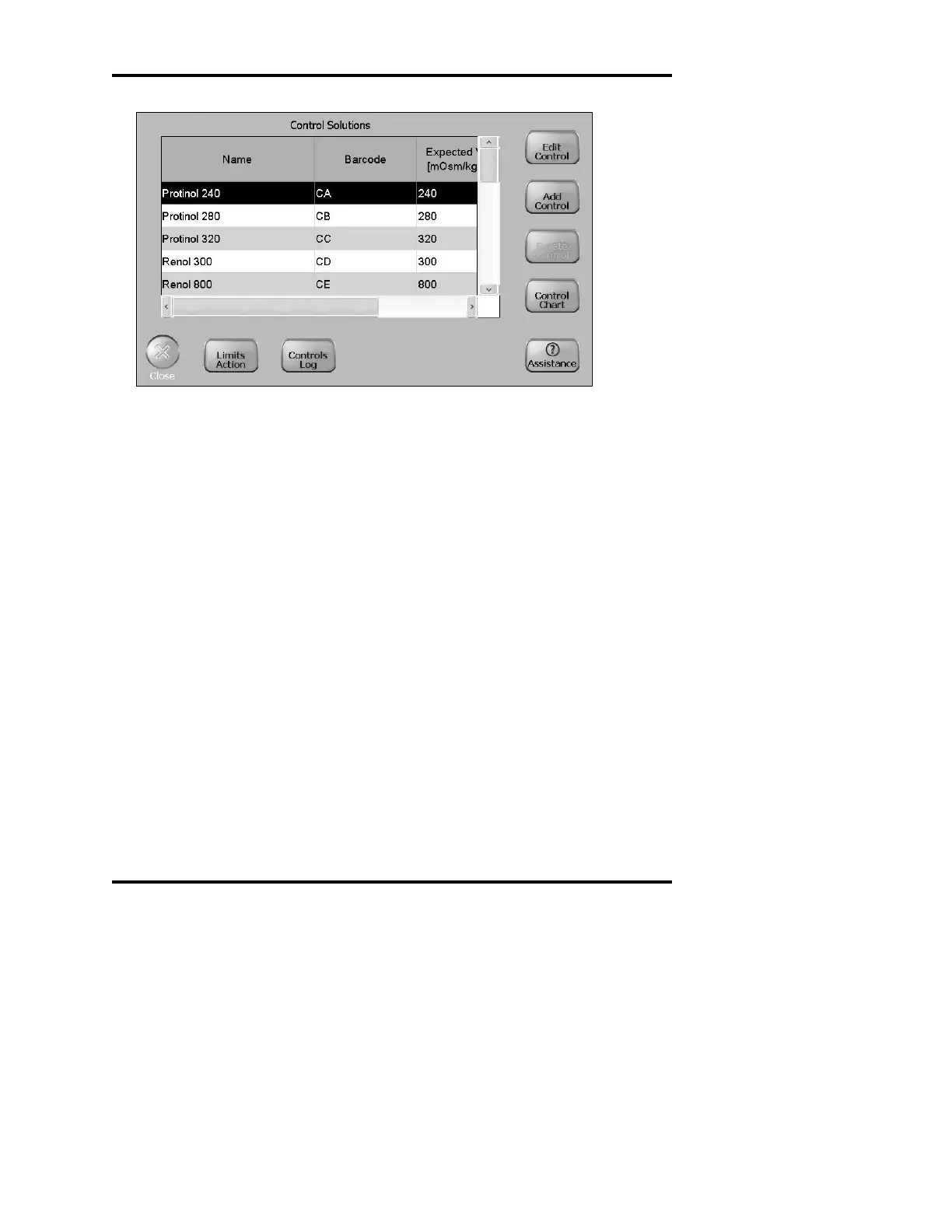

Figure 20
: The Control Solutions Screen
• Limits (+/-): Allowable deviation from the expected value. This
value is used to take any action on out-of-limit measurements as
described below.
Edit Control
When a control is selected and the Edit Control button is pushed, a
screen as shown in Figure 21 appears. The three fields described above,
Barcode, Expected Value and Limits (+/-) may be changed by pushing
the Modify button next to the current value. A text input screen is used
to enter the new value.
Add Control
When the Add Control button is pushed, a text input screen is used to
enter the name of the control. Then, the Edit Control screen (Figure 21)
is shown to enter the other fields as described above.
