Advanced Instruments A2O User Manual

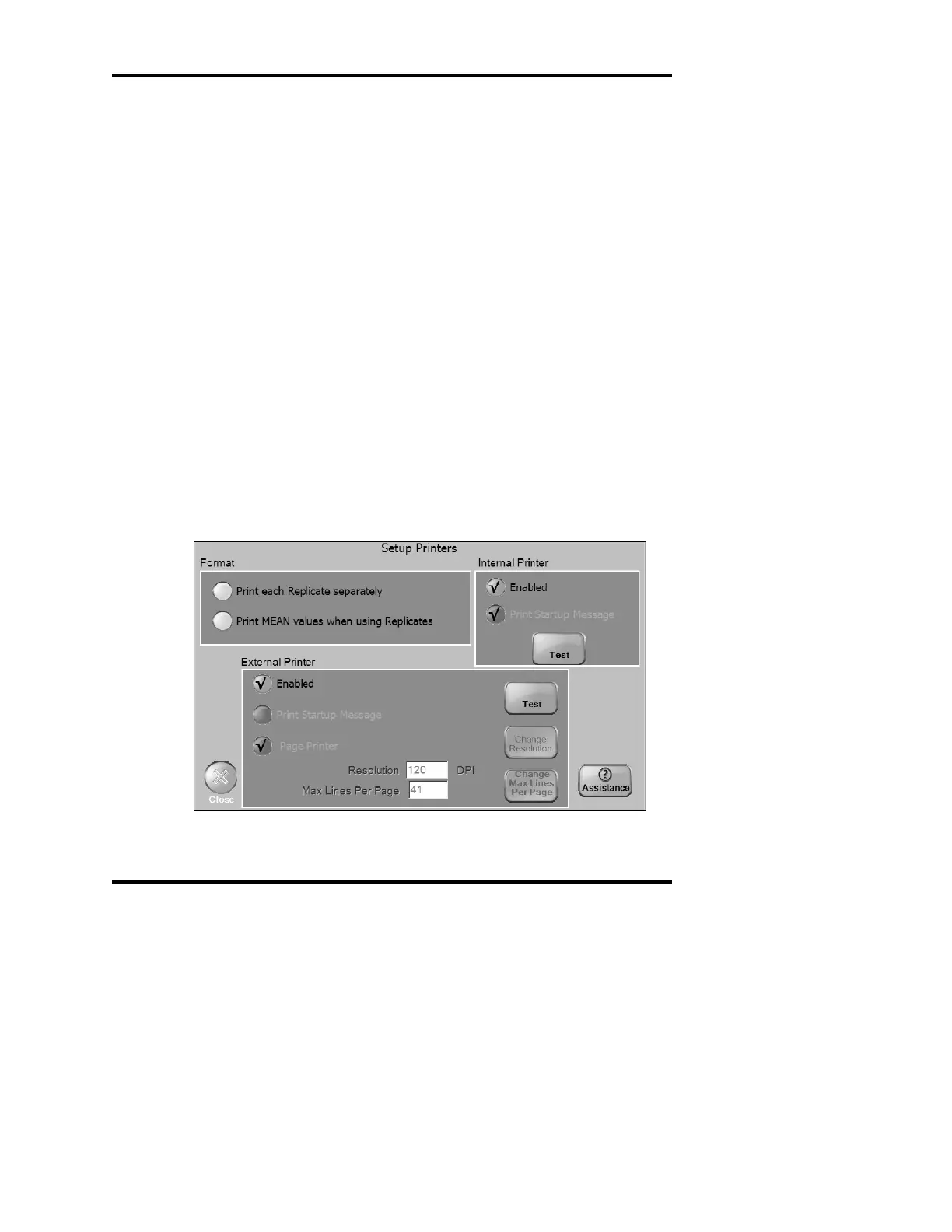

Figure 30
: The Printer Setup Screen
Passwords Required
Checking the appropriate button on the bottom of the User screen
enables passwords for either “all users” or only the “Supervisor” group.
Assistance
Brings up the Assistance screen (Figure 37), as described later in this
chapter.
Printer Setup screen
The Printer Setup screen (Figure 30) is used to setup the built-in printer
and an optional external printer. See Appendix D for additional infor-
mation on connecting external printers.
Configuring the Internal Printer
If the Enabled checkbox in the Internal Printer box of the printer setup
screen is checked, then the A
2
O will print test results to the internal
printer.
If the Print Startup Message checkbox in the Internal Printer box of the
printer setup screen is checked and the internal printer is enabled when
69
User Interface
