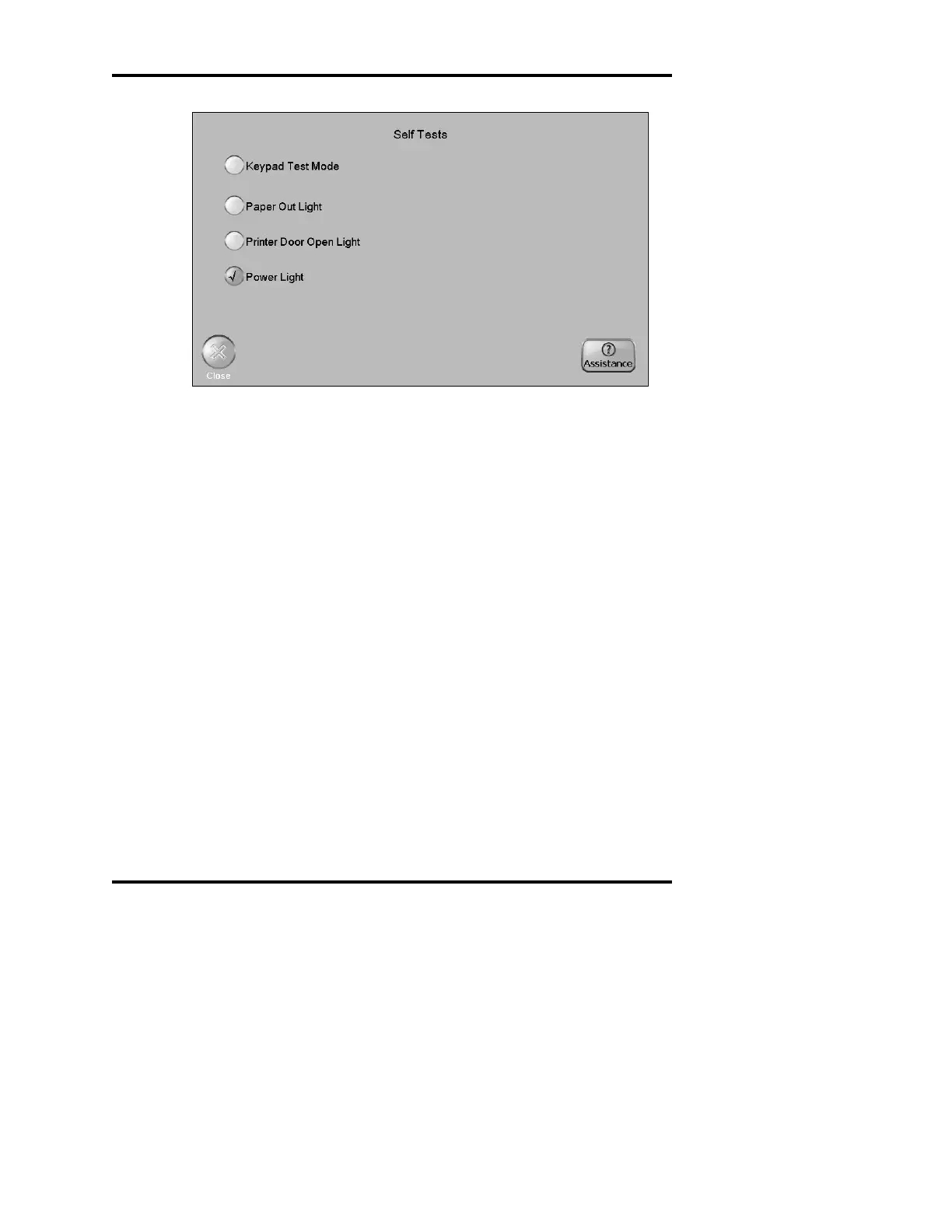

Figure 32
: The Self Tests Screen
Keypad Test Mode
When this button is checked, the actions of keypad buttons are disabled
while messages appear, indicating which button was pressed. The
Printer Feed button is not part of this test mode.
Paper Out Light, Printer Door Open Light, and Power Light
Check marks (on or off) correspond to the current read state of these
lights on the keypad. Observe that the lights change as each button is
pushed to change the state.
Positioning screen
The Positioning screen (Figure 33) is used to manually position the
pipette, primary carousel and osmometer turntable.
Home
When this button is pushed, both the Z and X motors will move to their
home positions.
Home Z Only
When this button is pushed, the Z motor will move to its home position.
