105 ADAM-6200 User Manual
Chapter 4 System Configuration

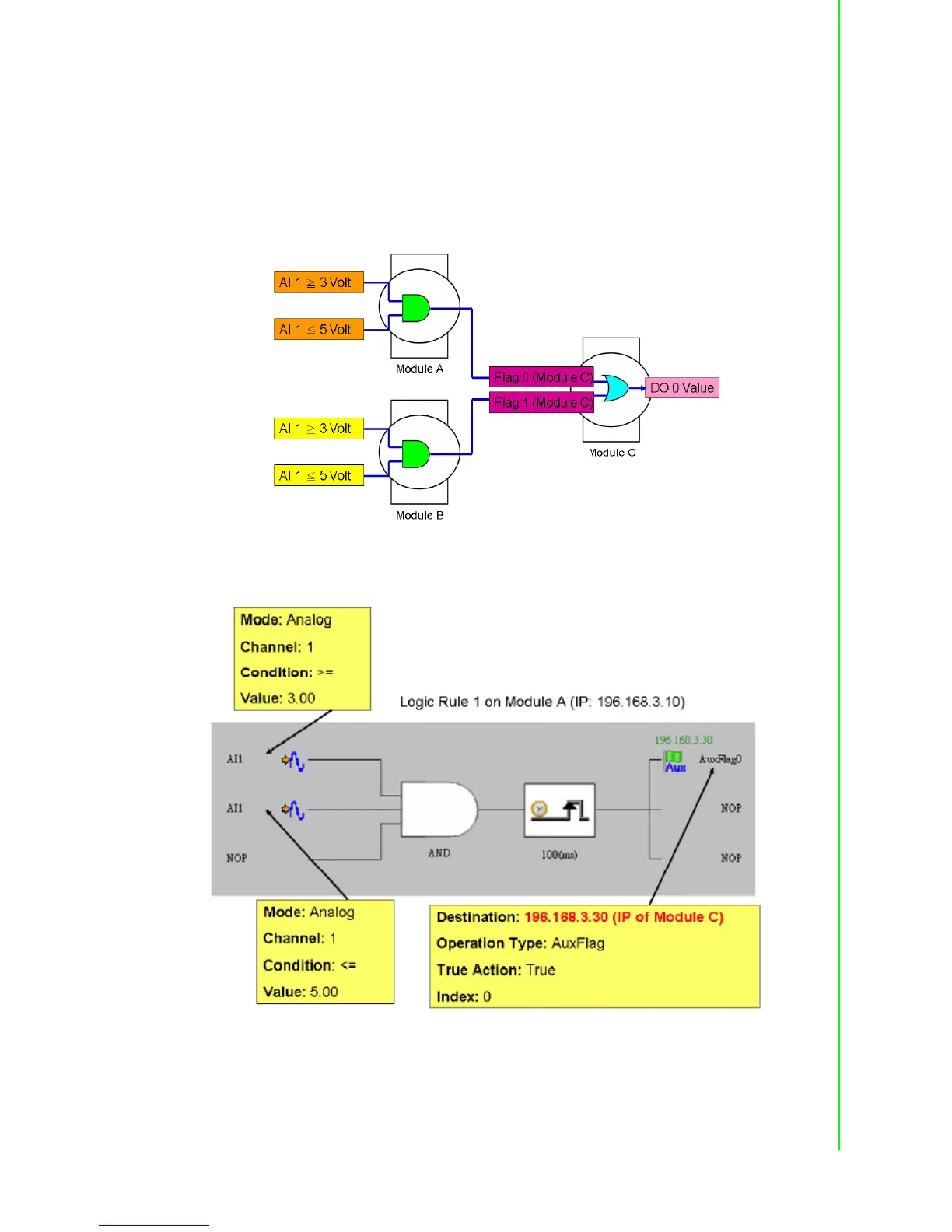

Distributed Logic Cascade
Logic Cascade function is not limited on one single module. Since you can define the
internal flag on another module, the logic cascade structure can be across different
modules. Take the previous application as example, now you can define the logic rule
1, 2, 3 are running on module A, B and C. Then the logic structure becomes across
three ADAM-6200 modules, and we call it Distributed Logic Cascade as refer to
below logic architecture and the configuration for the three logic rules.
Rule 1.
