Counter mode
When you choose Counter mode, one counter will count the pulse number of the dig-
ital signal from the selected channel, and then record the count number in the regis-

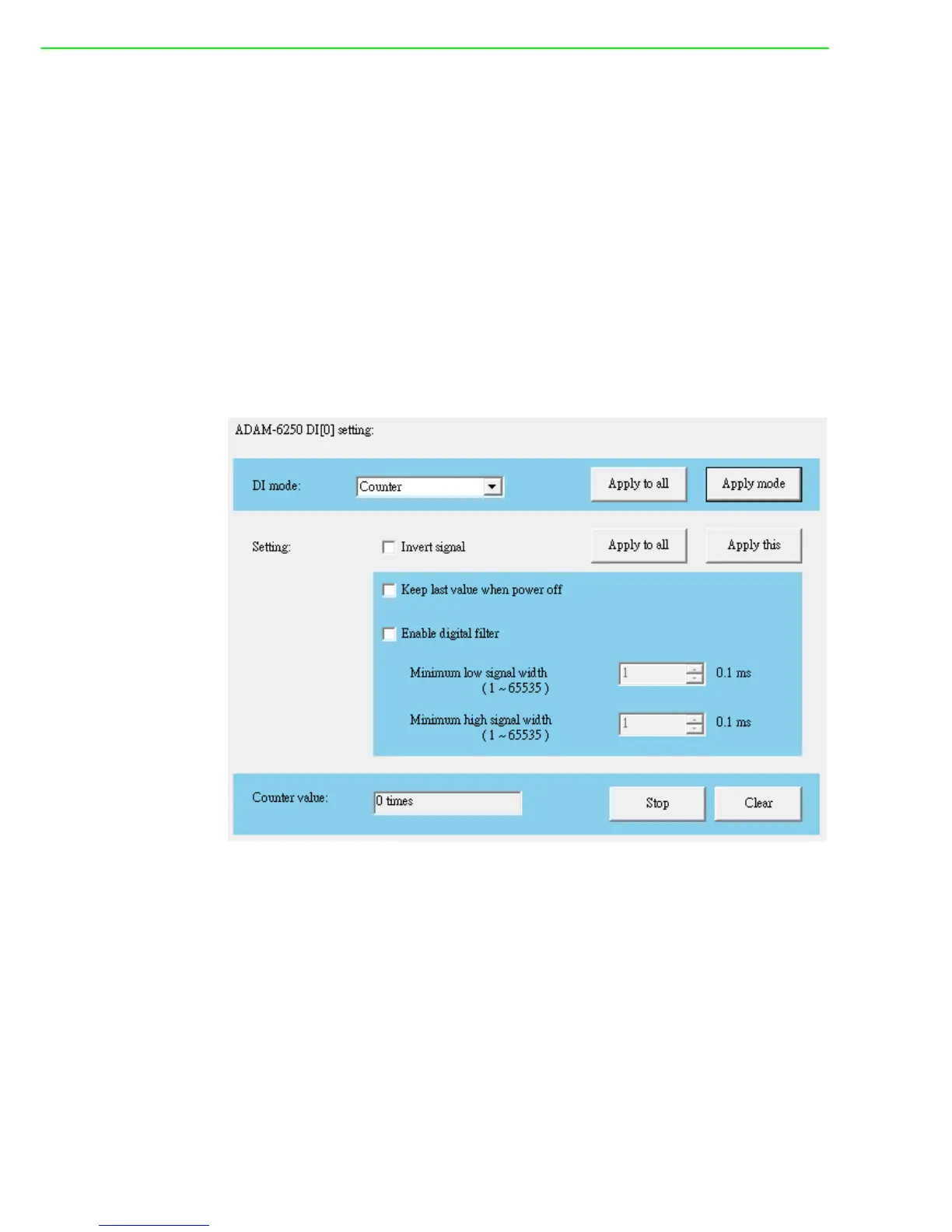

ter. At the bottom of the screen as below, present count value of the selected channel
is displayed by the Counter value text box. You can start or stop the counter to count
by clicking the Star/Stop button next to the Counter value text box. You also can reset
the counter (the value in the register will be initialized to zero) by clicking the Clear
button.
a. Invert signal - It will invert the logic state of input signal. In another words, when
no signal pulse come into DI channel, the DI status will be logic high (“1”)
b. Keep last value when power off - It can store the last counter value in the regis-
ter when the module power off.
c. Digital filter - It contains minimum high signal width and minimum low signal
width (1-65535) for filtering the noise.
d. Counter value - It will continuously display the present counter value unless it's
stopped.
