ADAM-6200 User Manual 70

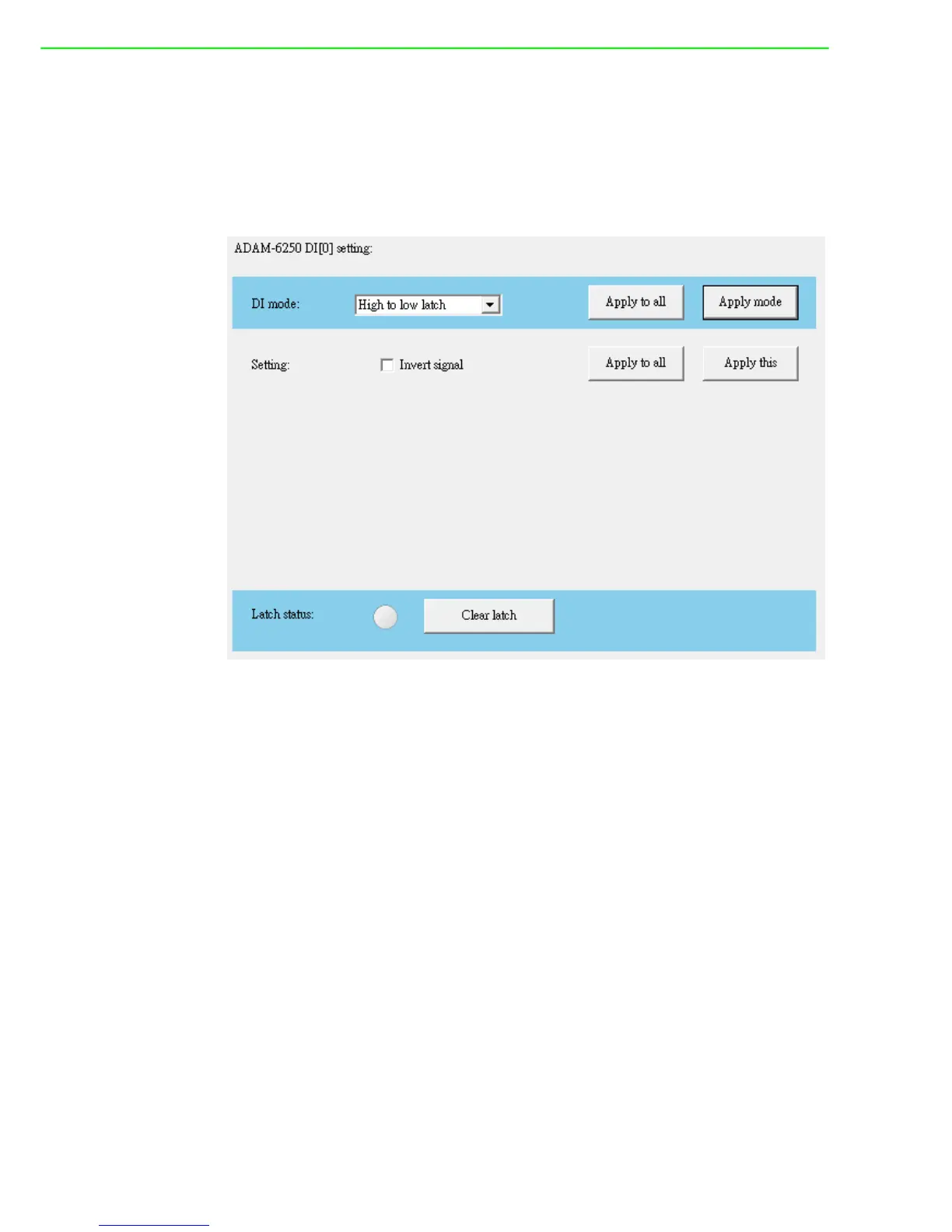

High to Low Latch mode
When you choose High to Low Latch mode, once the digital input channel detects
logic level changes from high to low, the logic status will be keep as logic High. The
logic status will remain the logic High, until you clear latch manually. Then the logic
status will back to logic Low. The logic status can be seen by the Latch status LED
display. If you want to clear latch, you can do it by clicking the Clear latch button. As
for Invert signal setting, it's the same as mentioned above.

Advantech ADAM-6256 Specifications

General

Brand	Advantech
Model	ADAM-6256
Category	Control Unit
Language	English
