15 ADAM-6200 User Manual
Chapter 2 Product Specifications
2.2 Analog Input Module (ADAM-6217)

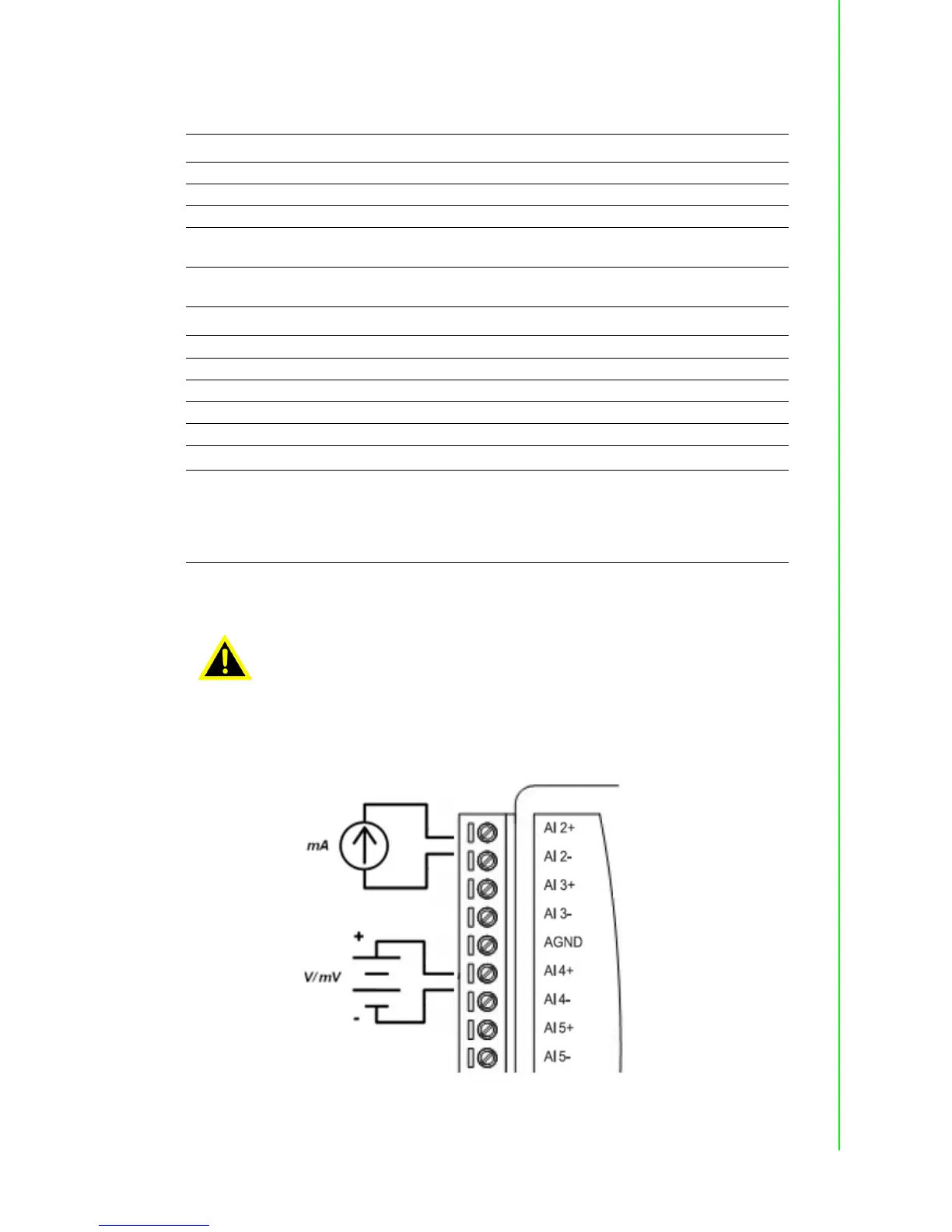

2.2.1 Application Wiring
Analog Input Description
Channel 8 (Differential)
Voltage Input Range ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V
Current Input Range ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA
Input Impedance
> 10 M (Voltage)
120 (Current)
Accuracy
±0.1% of FSR (Voltage)
±0.2% of FSR (Current)
Resolution 16-bit
Sampling Rate (Total) 10 samples/second
CMR @ 50/60 Hz 92 dB
NMR @ 50/60 Hz 60 dB
Span Drift ±30 ppm/°C
Zero Drift ±6 V/°C
Common-Mode Voltage
200 V
DC
Other Functions
Independent Channel Range Type
Independent Channel Enable Function
Current Input Open-wired Detect Function
Analog Input High/Low Alarm Function
Historical Max/Min Value, Average Value
Warning! 1. The maximum input voltage range is +/- 10V. In order to avoid caus-
ing system errors and damaging the ADAM module, make sure the input
voltage is within +/- 11V.
2. The default setting of switch is voltage. To prevent system damage,
make sure the switch and input signal are consistent.
