ADAM-6200 User Manual 32
3.2.2 DIN-Rail Mounting
The ADAM-6200 module can also be fixed to the cabinet by using mounting rails.
You need to assemble the DIN rail adapter to ADAM-6200 module with flathead
screwdriver as below. When the module is mounted on a rail, you may also consider
using end brackets at each end of the rail to keep the module from sliding horizontally
along the rail.

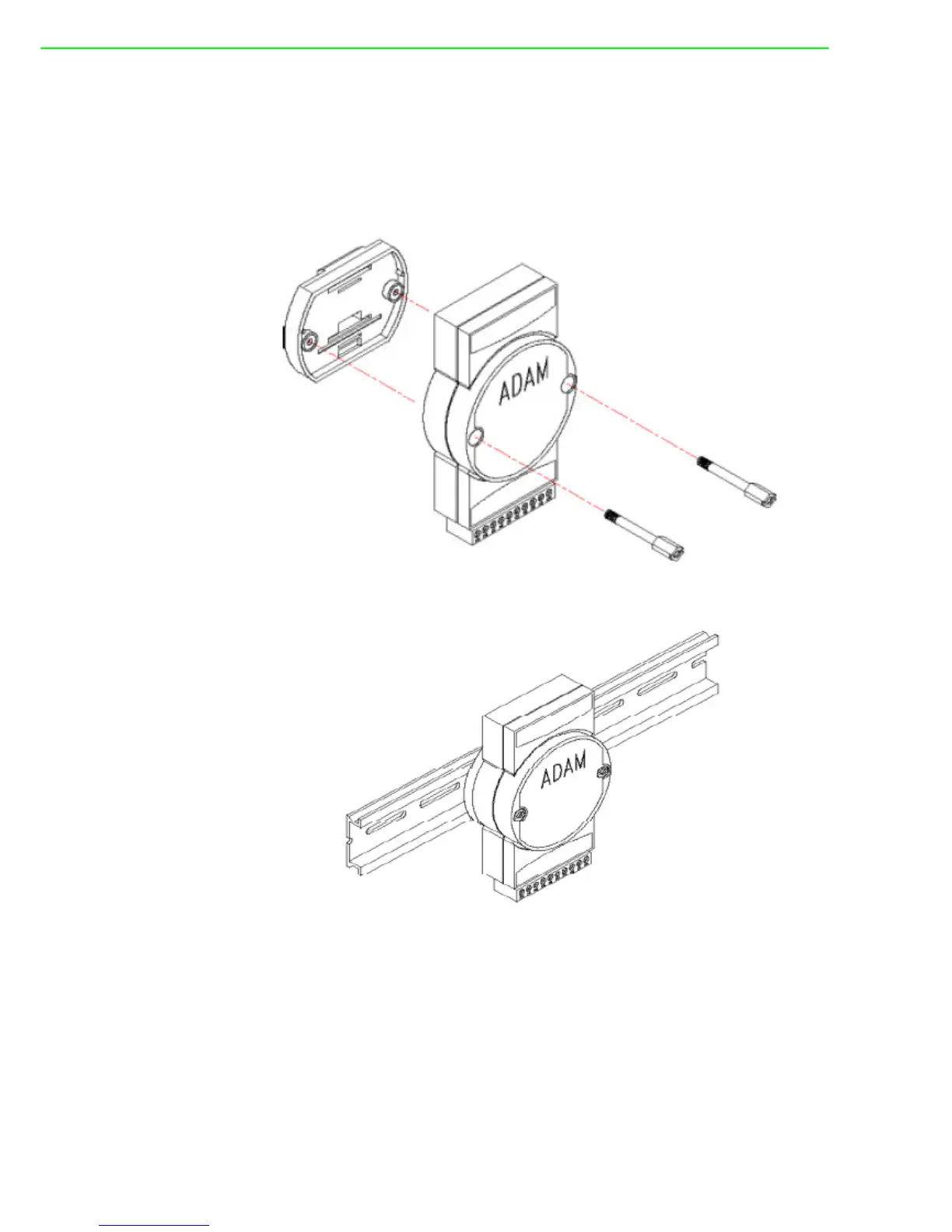

Figure 3.3 Assembly With Din Rail Adapter
Figure 3.4 ADAM Module Mounted On A Rail
