Chapter 4 System Configuration

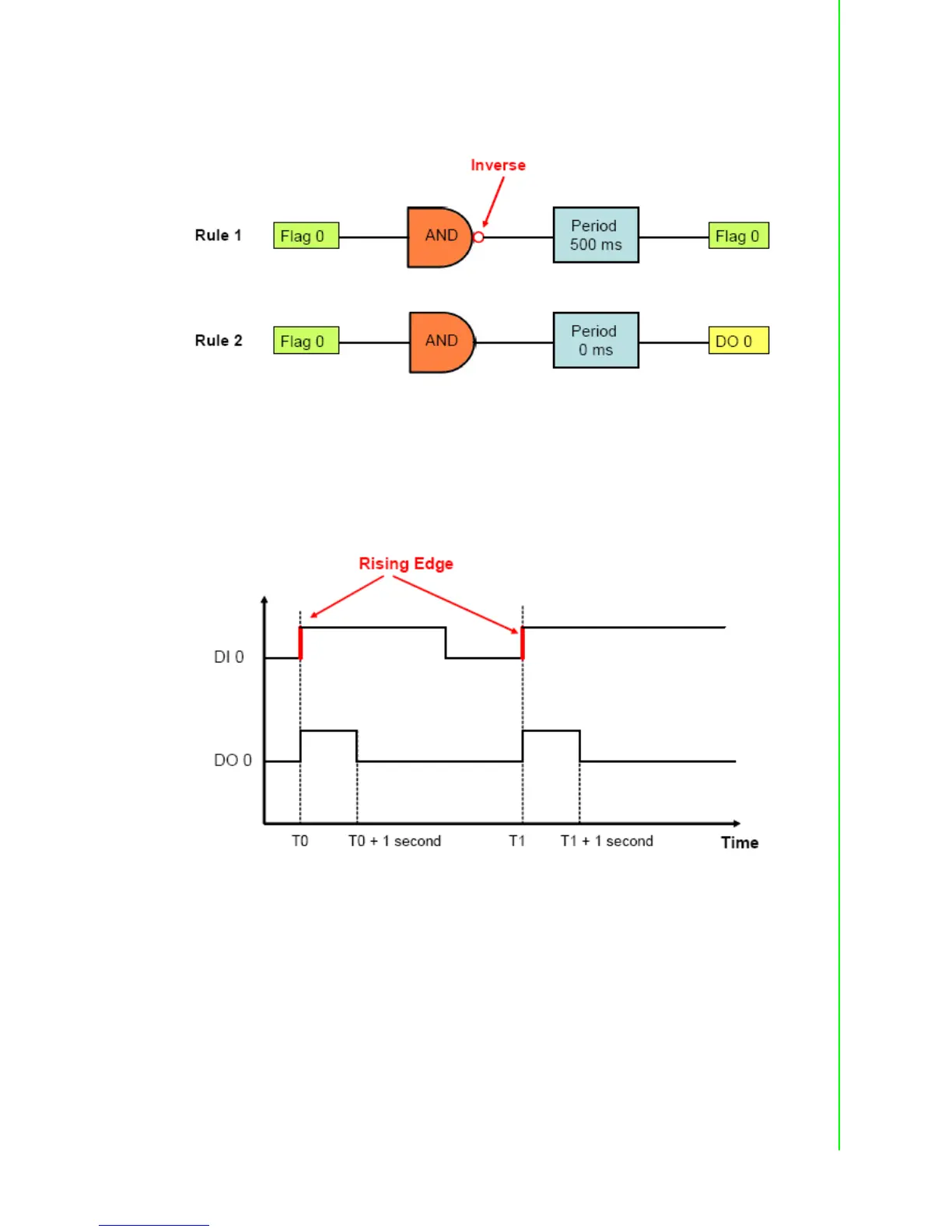

in logic rule 2, so DO 0 will change every 0.5 second. The GCL logic rule architecture
is shown as below:
6. Rising Edge
For Rising Edge application, the DO status will be activated to logic high, when DI
value is changed from logic low to logic high (it is so-called rising edge). But the DO
value won't continuously remain logic high. Instead, after a specific time interval (in
the example, it is 1 second), the DO value will return to logic low. Refer below for its
time chart:
