Chapter 2 Product Specifications
2.3 Analog Output Module (ADAM-6224)

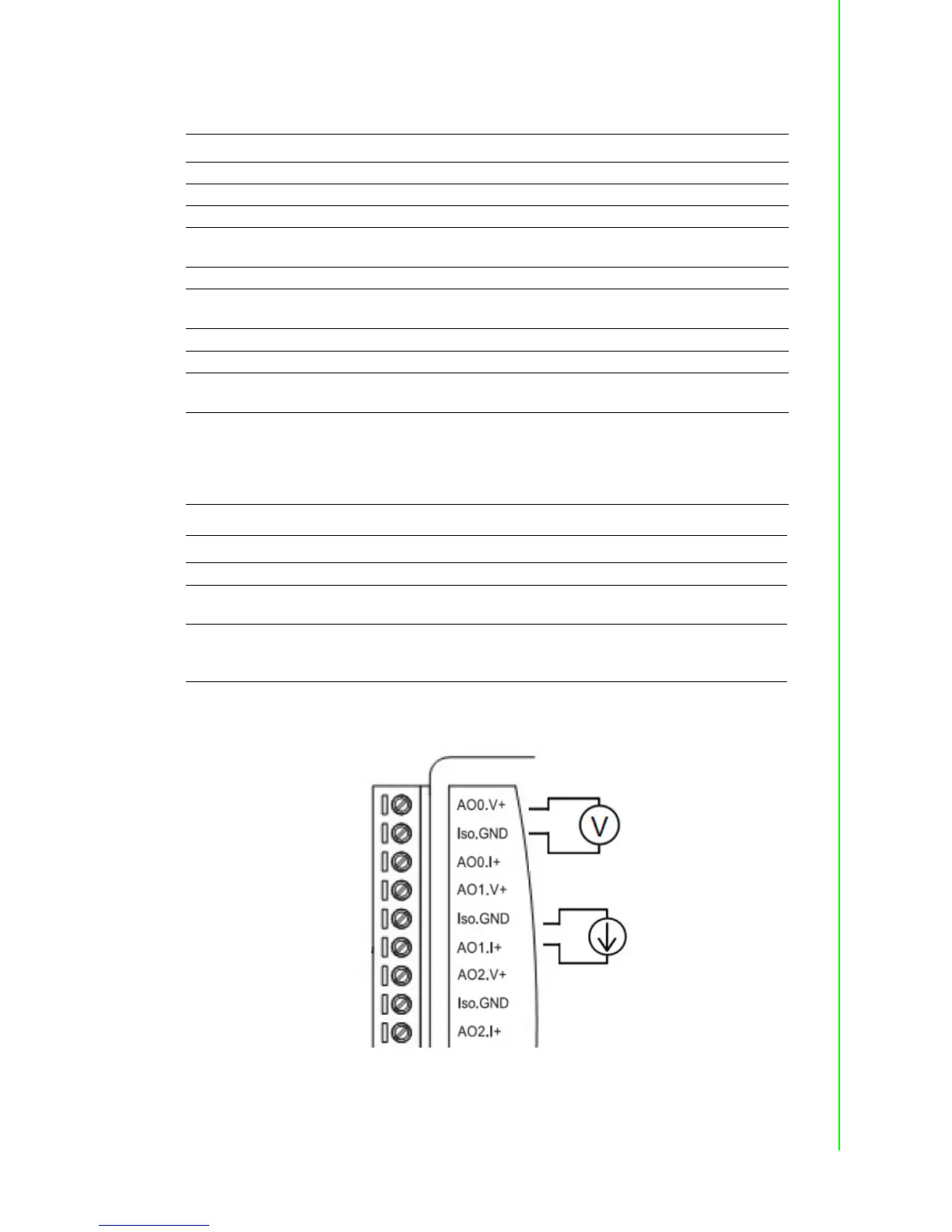

2.3.1 Application Wiring
Analog Output Description
Channel 4
Voltage Output Range ±5 V, ±10 V, 0~5 V, 0~10 V
Current Output Range 0 ~ 20 mA, 4 ~ 20 mA
Driving Load
Voltage: Min. 2k
Current: Max. 500 
Output Impedance 2.1 
Accuracy
0.3% of FSR (Voltage) at 25°C
0.5% of FSR (Current) at 25°C
Resolution 12-bit
Output settling Time 20 s
Programmable Output
Slope
0.125 – 128 mA/sec
0.0625 – 64 V/sec
Other Functions
Independent Channel Range Type
Current Output Open-wired Detect Function
Startup Value Setting
Communication Safety Value Setting
Digital Input Trigger Analog Output Function
Digital Input Description
Channel 4
Dry Contact
Logic 0: Open
Logic 1: Closed to Iso.GND
Other Functions
Support DI Filter
Support Inverted DI Status
Support Trigger to Startup or Safety Value
