Advantech ADAM-6256 User Manual

ADAM-6200 User Manual 8

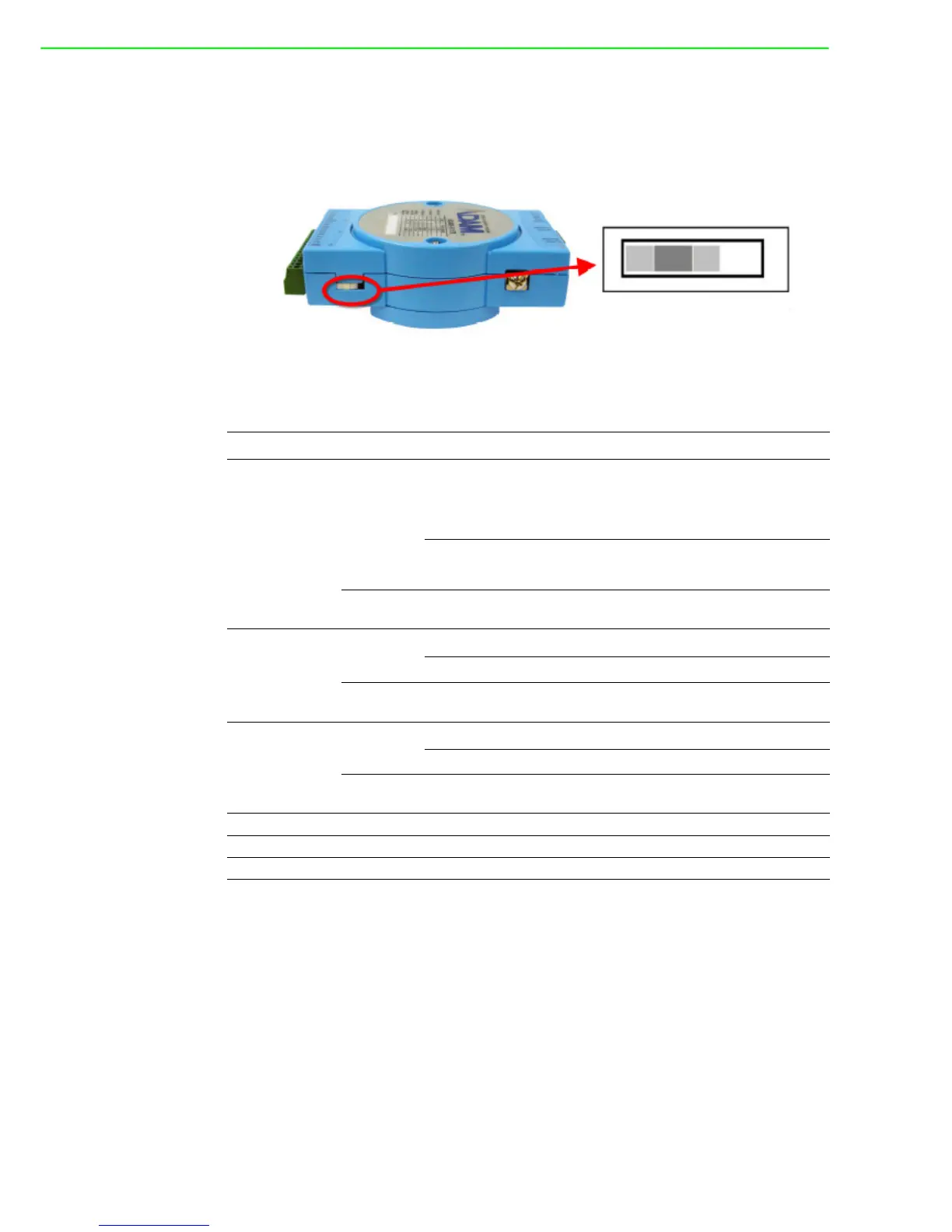

1.5 Switch
It’s non-functional now, but reserved for future use.
1.6 LED Definition
LED Color Indication Behavior
Status/Com
Green
(Status)
0.5 second ON
0.5 second OFF
Module is normally at work.
Always 10 sec
ON
When user enable LOCATE function.
Yellow
(Com)
Blink When TX/RX data in transmission.
Link/Speed 1
Green
(Link 1)
ON Ethernet is connected.
Blink When TX/RX is in transmission
Yellow
(Speed 1)
ON
ON: Ethernet speed is at 100 Mbps
OFF: Ethernet speed is less than 100 Mbps
Link/Speed 2
Green
(Link 2)
ON Ethernet is connected.
Blink When TX/RX is in transmission
Yellow
(Speed 2)
ON
ON: Ethernet speed is at 100 Mbps
OFF: Ethernet speed is less than 100 Mbps
DI Green ON / OFF Logic 1 / Logic 0
DO Orange ON / OFF Logic 1 / Logic 0
RL Orange ON / OFF Logic 1 / Logic 0
