31 ADAM-6200 User Manual
Chapter 3 Hardware Installation
3.2 Mounting
ADAM-6200 modules are designed as compact units and are allowed to be installed
in the field site under the following methods.
3.2.1 Panel Mounting
Each ADAM-6200 Module is packed with a plastic panel mounting bracket. User can
refer the bracket dimension and assembling figure to configure an optimal placement
in a panel or cabinet.

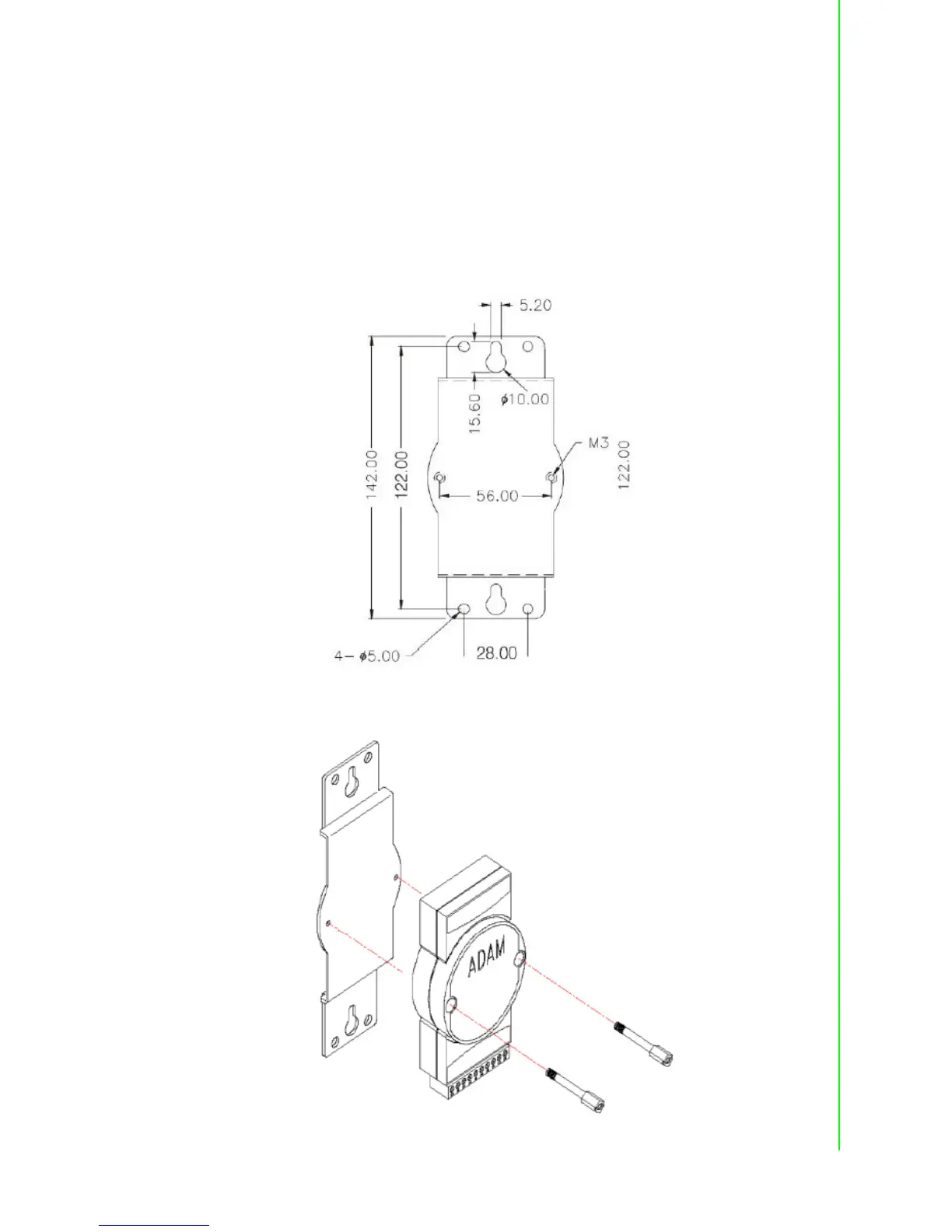

Figure 3.1 Bracket Dimension
Figure 3.2 Assembly with Bracket
