83 ADAM-6200 User Manual
Chapter 4 System Configuration

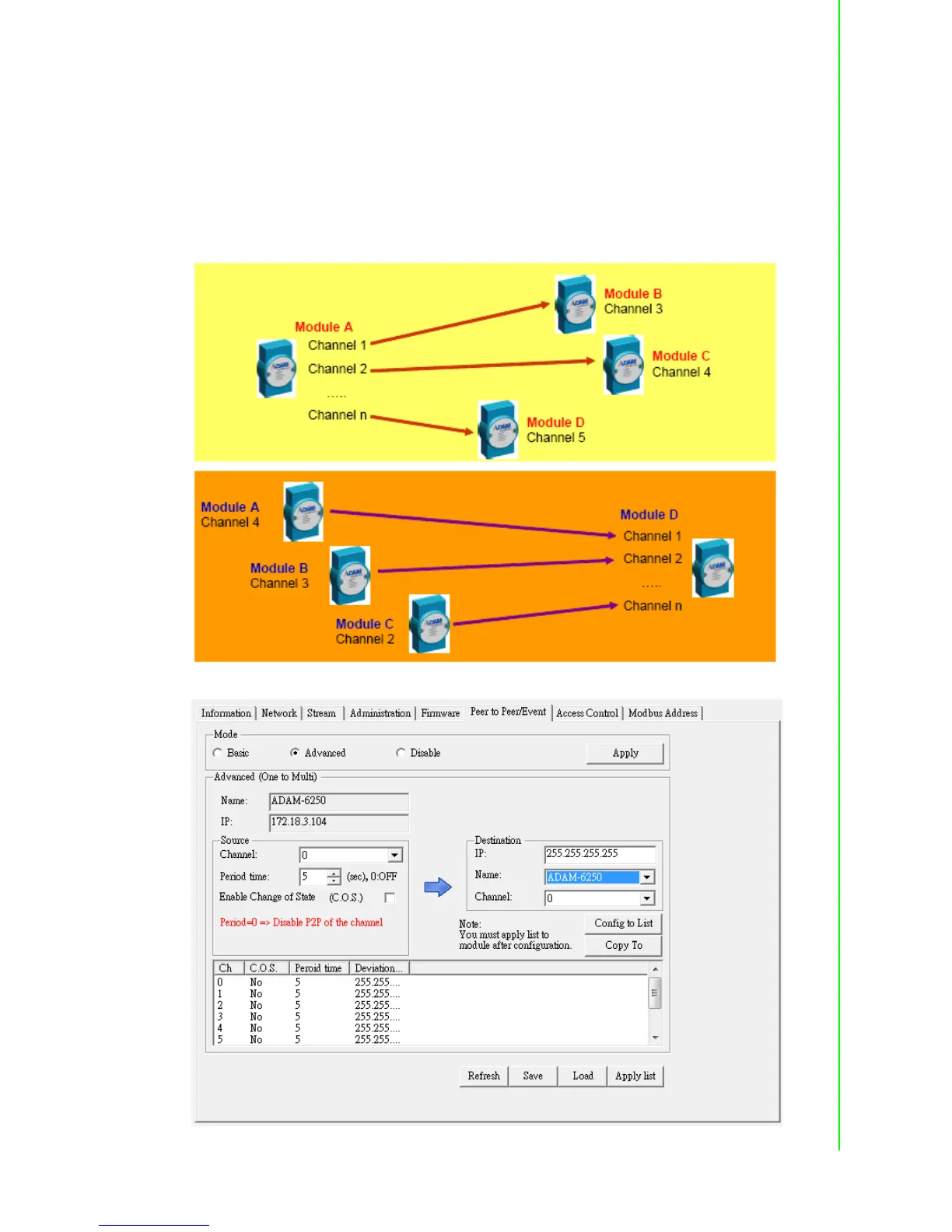

4.3.4.2 Advanced Mode
In advanced mode, there will be multiple target devices to receive the data trans-
ferred from one ADAM-6200 module (Module A). You can define different target
devices (by different IP address) to each channel of module A. For example, you can
define the input channel 1 of Module A is mapping to the output channel 3 of Module
B, while input channel 2 of Module A is mapping to the output channel 4 of Module C.
So value of input channel 1 and 2 on Module A will automatically update to channel 3
on Module B and channel 4 on Module C, respectively. Please refer to the following
figures for better understanding.
To Next Page
