57 ADAM-6200 User Manual
Chapter 4 System Configuration
4.3.3 I/O Configuration
After the introduction of ADAM-6200 general configuration in previous section, you're
realized how to operate with several key functions in your application. Furthermore,
you will learn the way to set up all I/O channel configuration in details such as chan-
nel range, calibration and alarm.
You can select one of ADAM-6200 module you want to configure and spread its

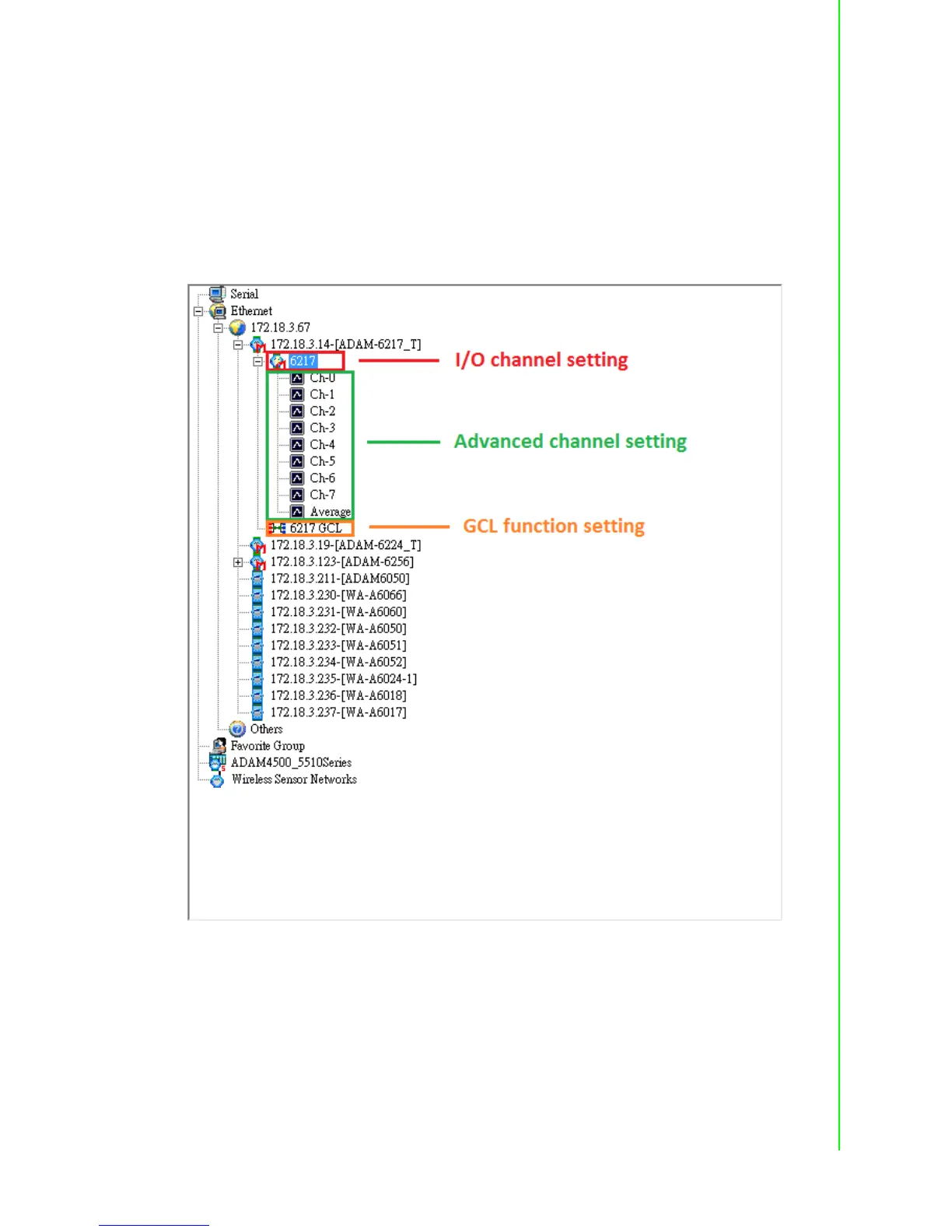

channel list by entering the password in the Module Tree screen. As below figure, it
will be divided into three parts, I/O channel overview, advanced channel setting and
GCL function setting.
I/O channel overview
You will see all I/O channel status and output enable setting.
Advanced channel setting
You will be able to specifically configure single channel for details.
GCL function setting
It will be introduced in the following section.
