ADAM-6200 User Manual 66
4.3.3.3 ADAM-6250
Digital Input Channel Overview
Locate
It can help user search ADAM module with light sign. (Status LED will be on for 10
sec when it enabled.)
Channel Setting

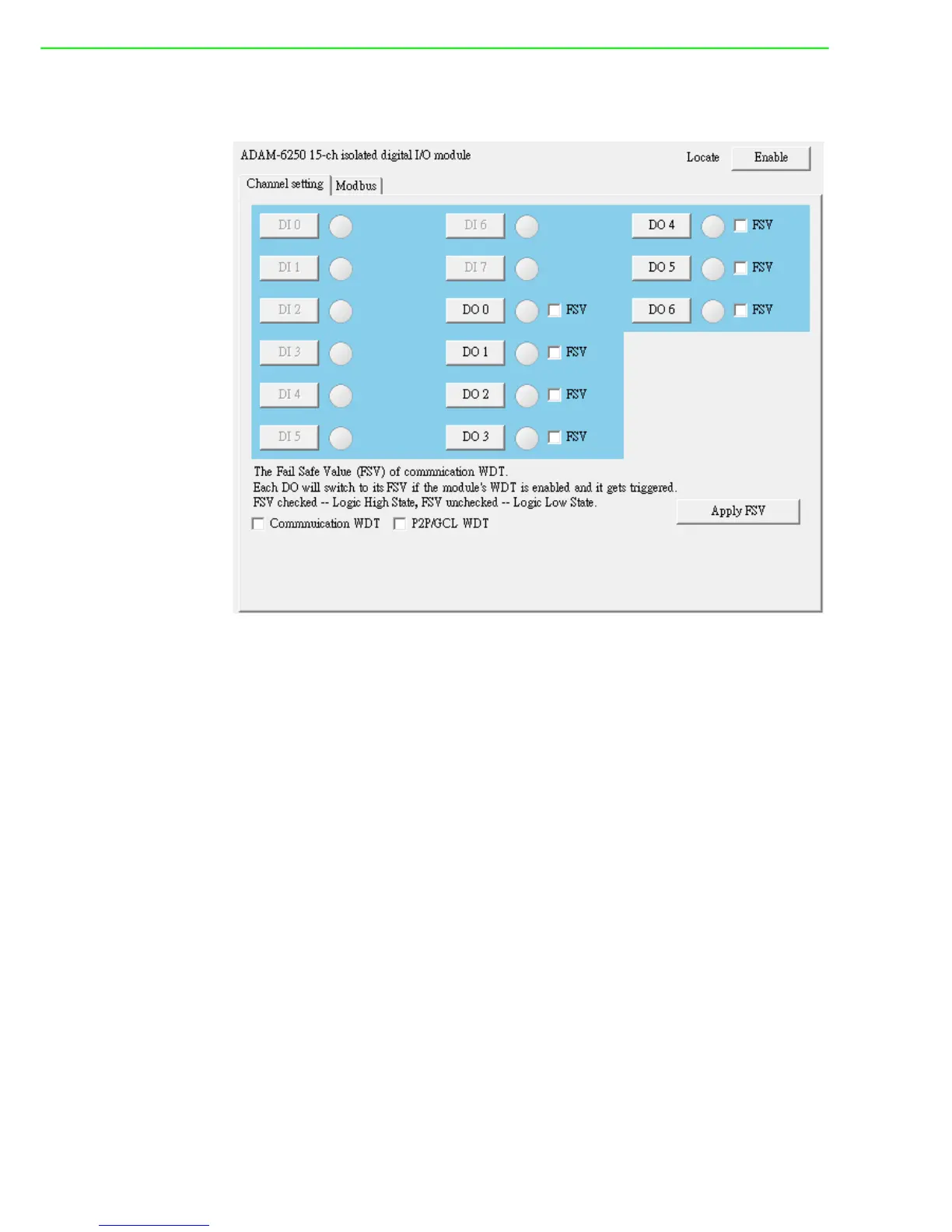

You can see value of all digital input channels by related LED display in this tab.
Besides, you also can control values of all digital output channels by related button.
The LED next to the button will display current value of that digital output channel.
The Fail Safe Value (FSV) of communication WDT
If FSV checkbox is enabled, it presents the module will set the output channel to logic
high when WDT timeout. There are two application as below. After all, click the Apply
FSV button to take it effect.
a. Communication WDT
When the module hasn't received any TCP network packet from client too long,
such as SCADA or Web browser. That means if the waiting time is greater than
host idle time, the module will automatically set the safety value to output.
b. P2P/GCL WDT
When the module hasn't received P2P/GCL network packets too long, that
means the waiting time is greater than idle time you entered, the module will
automatically send the safety value to host PC if you've enabled this function.
Modbus
It indicates the overview of the status (value) of its corresponding Modbus address,
channel and mode.
