Operation
Using the Manual Coupler 6.20
59
[en-US] | 08/2022 | 5100064108 | SM100 | Operator’s Manual

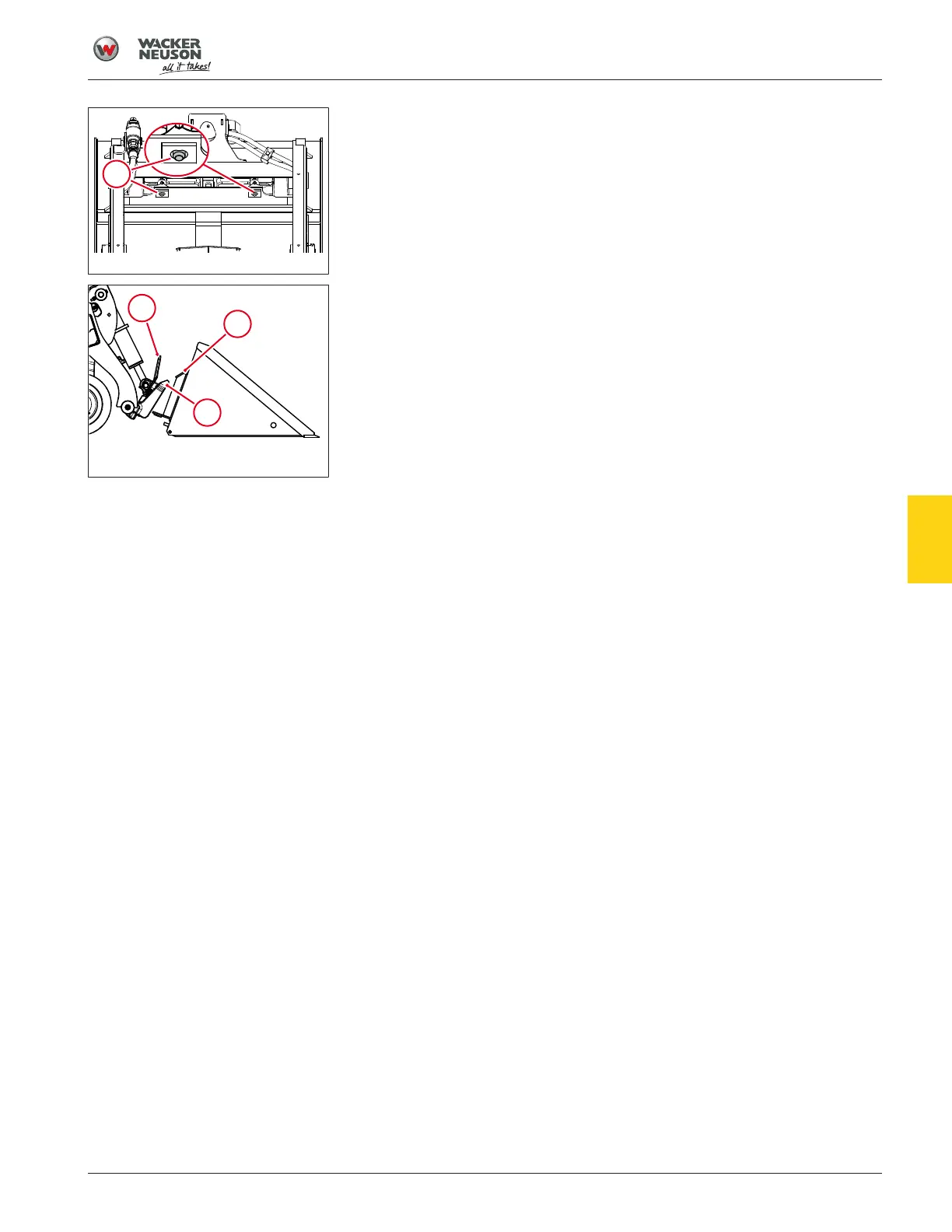

Fig.40: Coupler Pins
With any attachment, ensure the lower coupler pins (1) protrude through the
attachment’s lower mounting plate.
Removing an attachment
1. Lower the lift arm completely. Then, tilt the attachment back slightly so
that it is not touching the ground.
2. Stop the engine.
Fig.41: Lock levers, guide, and
mount
3. Set the lock levers(1) in the unlocked (up) position.
4. Start the engine and press the parking brake switch to disengage the
parking brake.
5. Tilt the coupler forward until the upper guide(2) clears the attachment’s
upper mount(3).
6. Move the machine in reverse away from the attachment.
Note: Tilting the attachment back reduces the force to set the lock levers in
the locked and unlocked positions.
