Chapter 3 Methods and Mappings 59
USG-CUS-059 Rev05MassARRAY® Nanodispenser RS1000 v2.1 User Guide
For Research Use Only. Not for use in diagnostic procedures.
Table 3.2 Predefined Mapping Files
This section shows how the predefined mapping files specify dispensing from microtiter
plates to SpectroCHIP Arrays. It provides mapping diagrams for a standard SCOUT plate.
Each mapping file requires a particular pin array format. The standard format is 24-pin. An
adapter kit is available for adapting a 24-pin instrument to a 6-pin format. See Appendix
A, page 117 for more details on changing the instrument pin array format.
When using a predefined mapping file, you do not have to run the maximum number of
microtiter plates or SpectroCHIP Arrays allowed. The number of SpectroCHIP Arrays to
be run is set in the SpectroCHIP Array position diagram in the Method screen (Figure 3.1).
The number of SpectroCHIP Arrays determines the number of plates in the run because
each SpectroCHIP Array is mapped to a plate or portion of a plate.
384 MTP to 384
SpectroCHIP Array
mapping file
Use this mapping file to dispense from 384-well microtiter plates to 384 SpectroCHIP
Arrays. This mapping file requires the standard 24-pin format. A maximum of two plates
and two SpectroCHIP Arrays can be run using this mapping file. Each plate is dispensed
to one of the SpectroCHIP Arrays.
Mapping File Name Description
Required
Pin Format
384 MTP to 384
SpectroCHIP Array Map
One or two 384-well microtiter plates to one or
two 384 SpectroCHIP Arrays.
24
96 MTP to 96
SpectroCHIP Array Map
One or two 96-well microtiter plates to one or two
96 SpectroCHIP Arrays.
6
384 Calibrant Map 384-well microtiter plate well A1 to 384
SpectroCHIP Array using single pin. Used only to
make calibrant SpectroCHIP Array for optimizing
purposes on the Analyzer.
1
96 Calibrant Map 96-well microtiter plate well A1 to 96 SpectroCHIP
Array using single pin. Used only to make
calibrant SpectroCHIP Array for optimizing
purposes on the Analyzer.
1

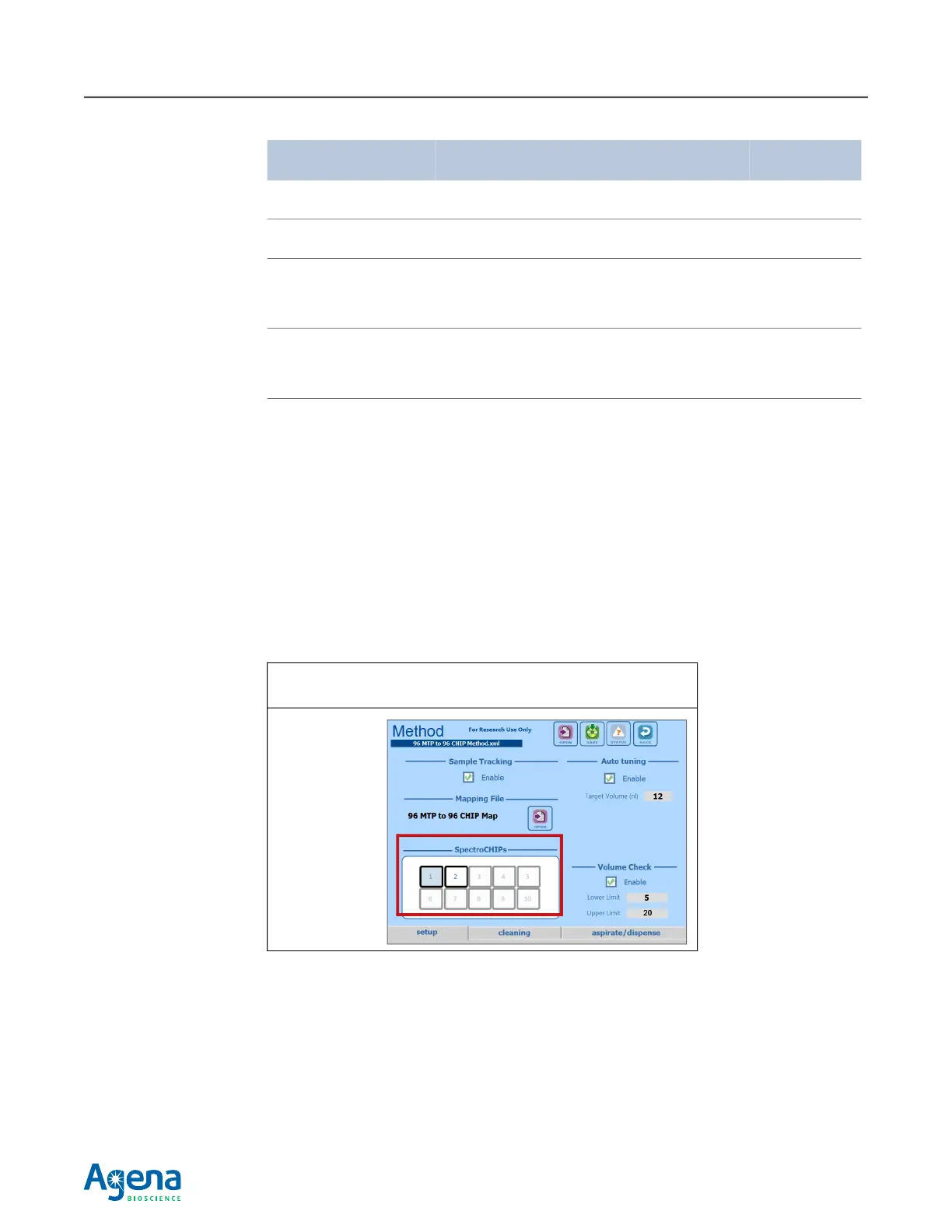

Figure 3.1 Set the Number of SpectroCHIP Arrays in the Method
Screen
In this example,
there is one
SpectroCHIP
Array in the run.
