Imagesetter Maintenance 5–5
Cleaning Avantra 20 and 25 Punch Trays
Check the punch trays every three months. Perform the following
procedure to empty them.
1. Turn off the imagesetter.
2. Open the left side bottom door. See Figure 5.3.
3. There are two punch trays, both below the imaging drum. They
are bright red. Slide the trays out of the imagesetter to empty
them.

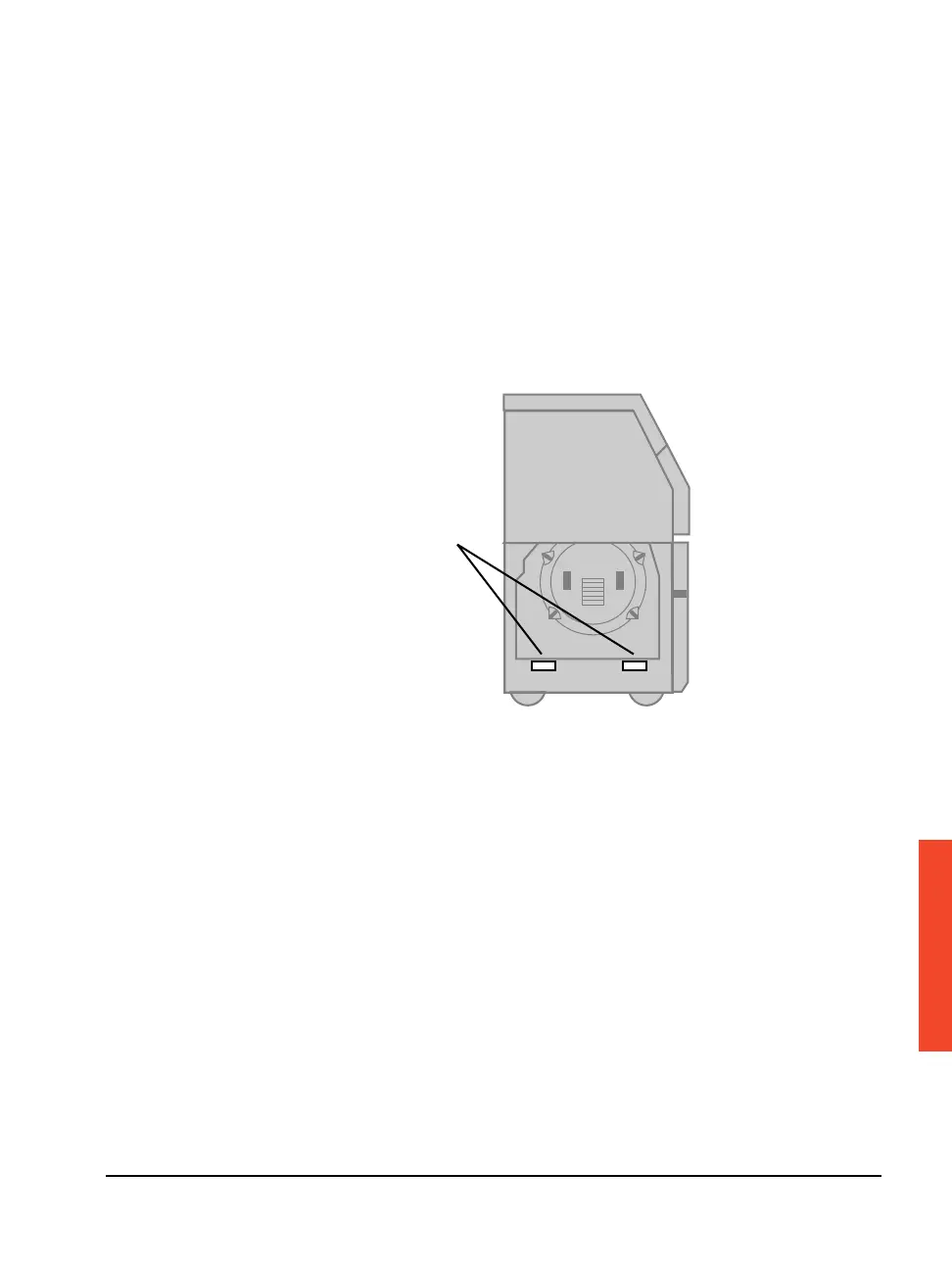

Figure 5.3 The Avantra 20/25 imagesetter with the left side door open.
➀—The punch trays.
4. Replace the trays, close the left side door and restart the imagesetter.
