Cleaning Avantra 36 and 44 Punch Trays
Check the supply punch chaff tray (Avantra 44 only) and the take-up
cassette punch chaff tray every three months.

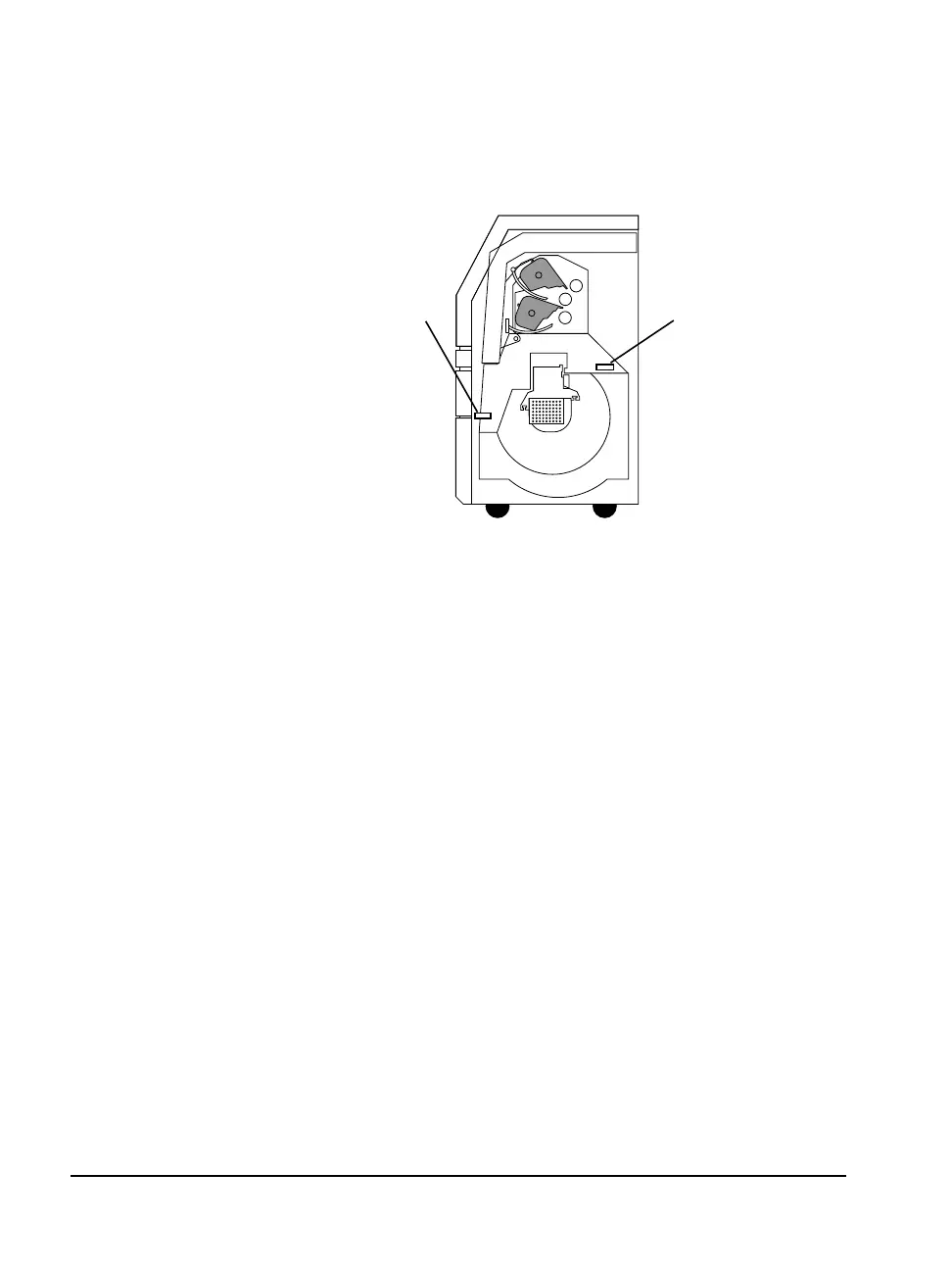

Figure 5.8 Cutaway view of the Avantra 36/44 imagesetter.
➀—The supply punch chaff tray (Avantra 44 only).
➁—The take-up cassette punch chaff tray.
Cleaning the Avantra 44 Supply Punch Chaff Tray
Perform the following procedure to empty the the supply punch chaff
tray.
1. Turn off the imagesetter.
2. Raise the top cover. See Figure 5.9.
➁
➀
