142 Agilent 1200 Series Autosampler Reference Manual
4 Repairing the Autosampler

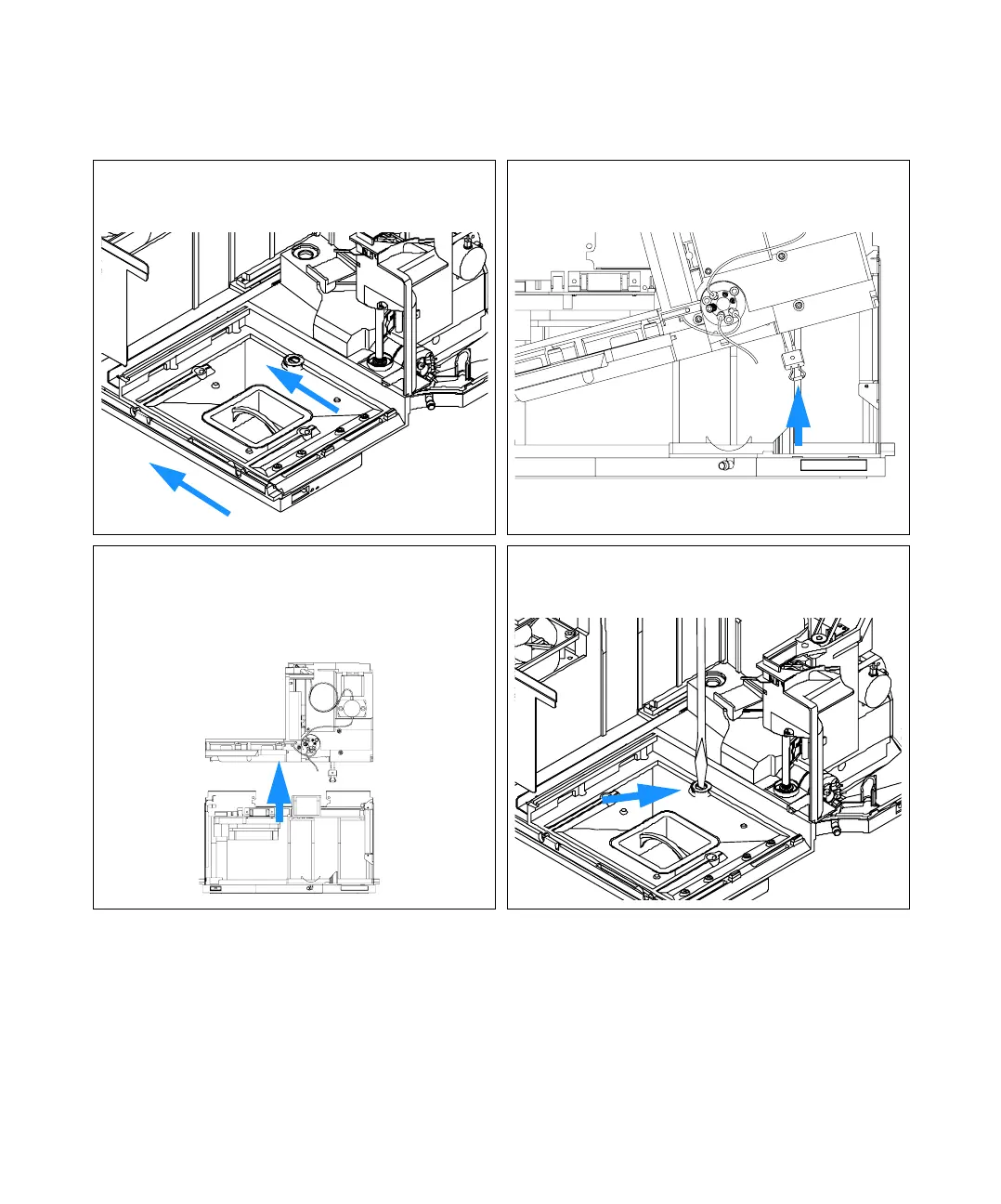

3 Slide the sampling unit and tray base back to disengage
the sampling-unit connector.
4 Lift the sampling unit and tray base approximately 10 cm.
Slide the leak sensor out of the leak plane.
5 Lift the sampling unit and tray base out of the
autosampler.
6 Turn the tray-base locking screw ¼-turn anti-clockwise.
