Agilent Technologies 1200 series Reference Manual

Agilent 1200 Series Autosampler Reference Manual 205
Identifying Cables 6
Remote Cables
One end of these cables provides a Agilent Technologies APG (Analytical
Products Group) remote connector to be connected to Agilent 1200 Series
modules. The other end depends on the instrument to be connected to.

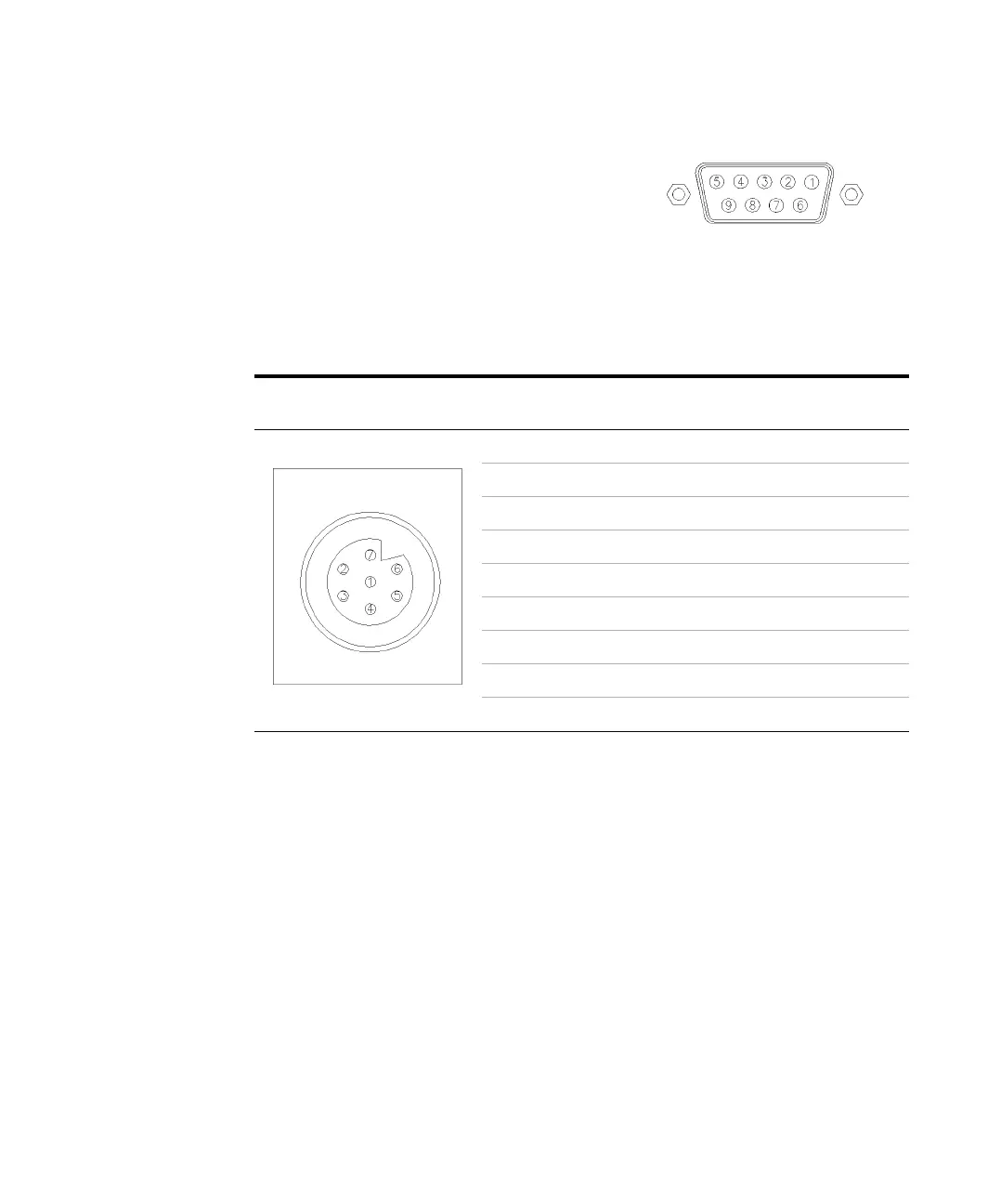

Agilent 1200 to 3390 Integrators
Connector
01046-60203
Pin
3390
Pin
Agilent 1200
Signal Name Active
(TTL)
2 1 - White Digital ground
NC 2 - Brown Prepare run Low
7 3 - Gray Start Low
NC 4 - Blue Shut down Low
NC 5 - Pink Not connected
NC 6 - Yellow Power on High
NC 7 - Red Ready High
NC 8 - Green Stop Low
NC 9 - Black Start request Low
