150 Agilent 1200 Series Autosampler Reference Manual
4 Repairing the Autosampler
Metering-Drive Motor and Belt
Frequency When belt or motor defective
Tools required Pozidrive No. 1 screwdriver
Parts required Metering-drive motor 5062-8590
Belt 1500-0697
Preparations for this
procedure
Remove the top cover (page 134).
Remove the transport assembly (page 139).
Remove the sampling unit (page 141).

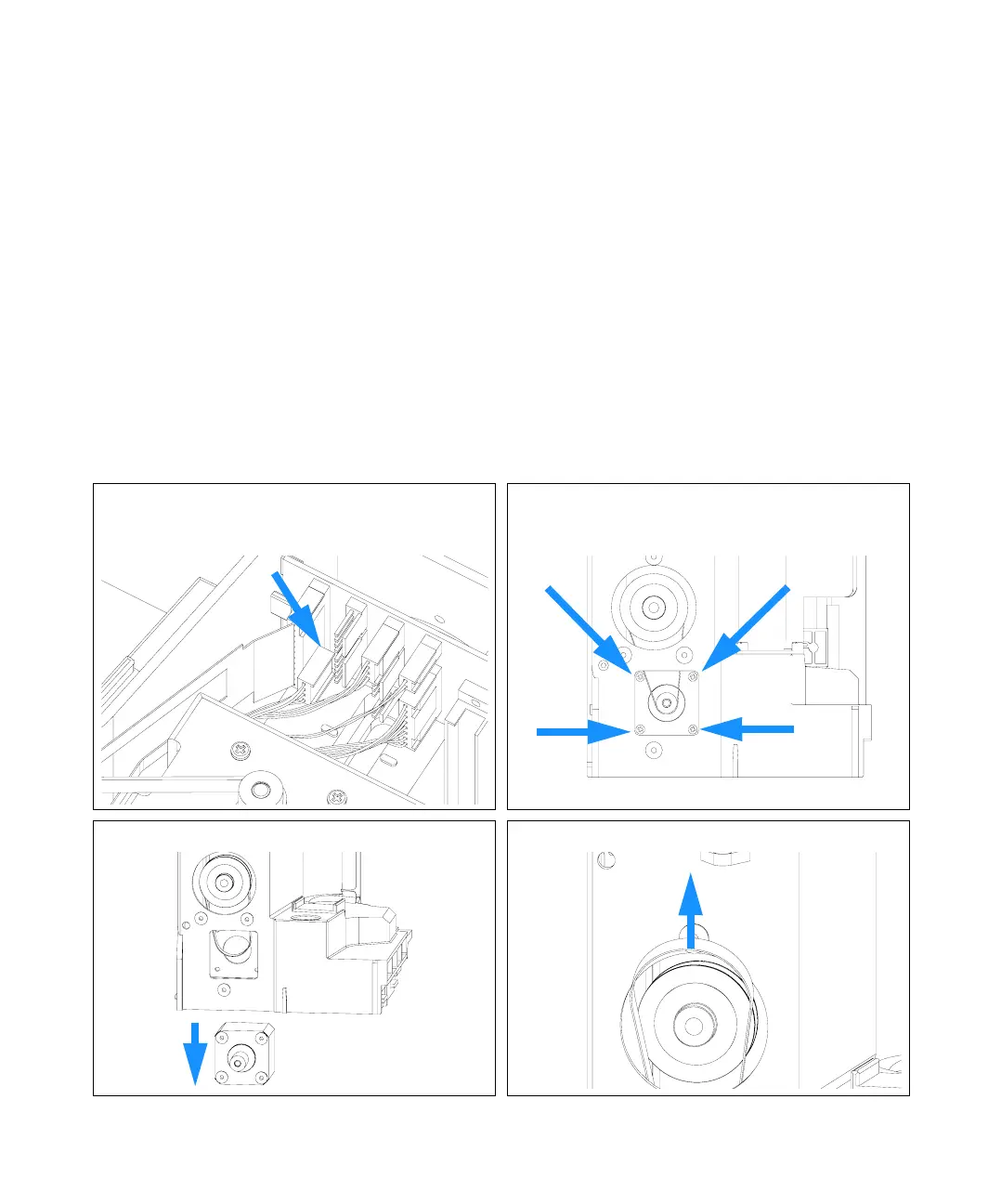

1 Disconnect the motor connector from the SUD board
(labelled “Metering M”).
2 Remove the four fixing screws.
3 Remove the motor. 4 Remove the belt.
