Repairing the Autosampler 4

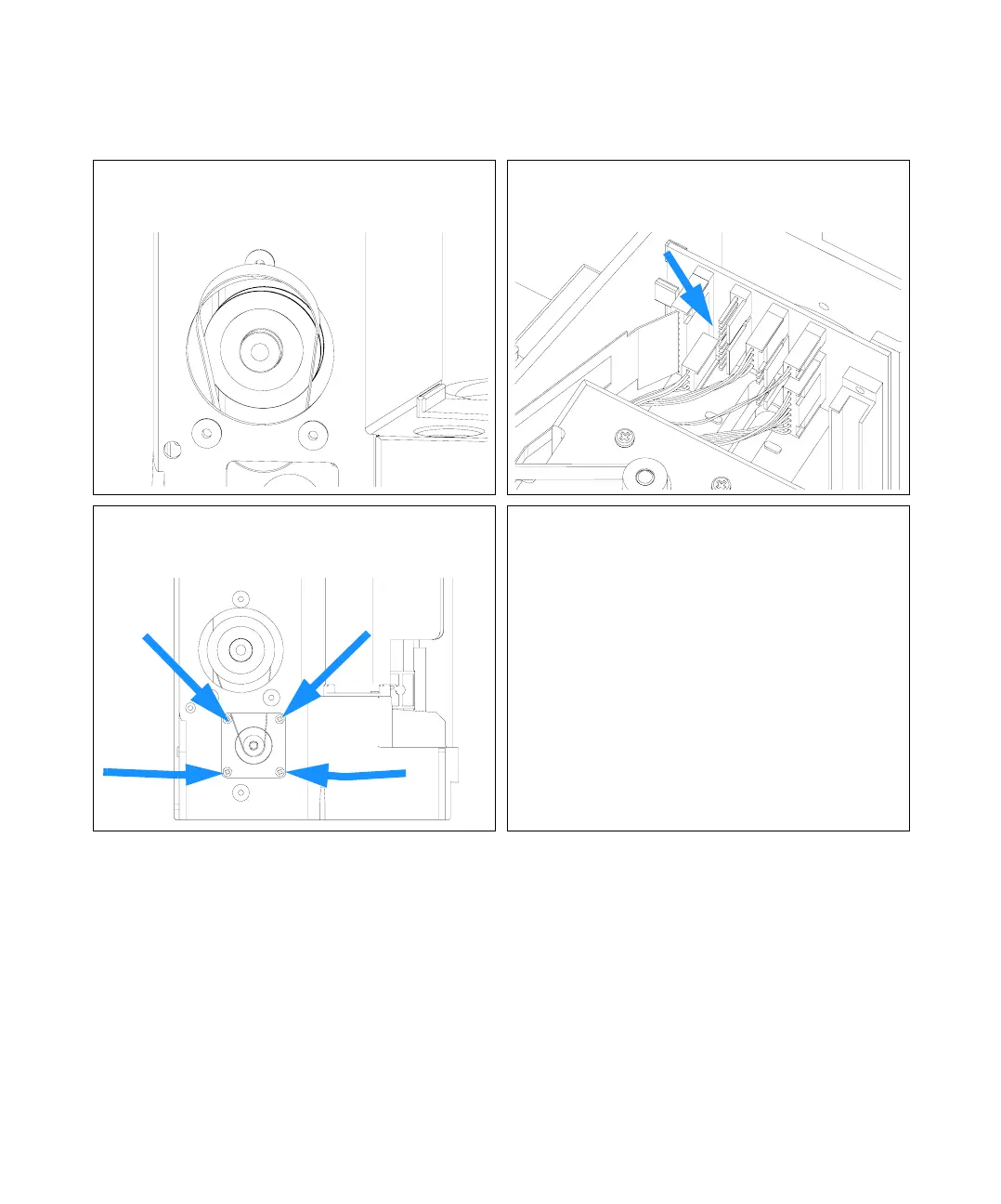

5 Place the belt over the shaft. 6 Feed the motor cable through to the SUD board. Connect
the cable to (labelled “Metering M”).
7 Install the motor with the four fixing screws. Ensure the
belt is seated correctly over the gear and motor shaft.
On completion of this procedure:
• Install the sampling unit (page 141).
• Install the transport assembly (page 139).
• Install the top cover (page 134).
• Verify the transport assembly alignment (page 102).
