Agilent Technologies 1200 series - Needle-Drive Motor and Belt

152 Agilent 1200 Series Autosampler Reference Manual
4 Repairing the Autosampler
Needle-Drive Motor and Belt
Frequency When defective
Tools required Pozidrive No. 1 screwdriver
Parts required Needle-drive motor 5062-8590
Belt 1500-0697
Preparations for this
procedure
Remove the top cover (page 134).

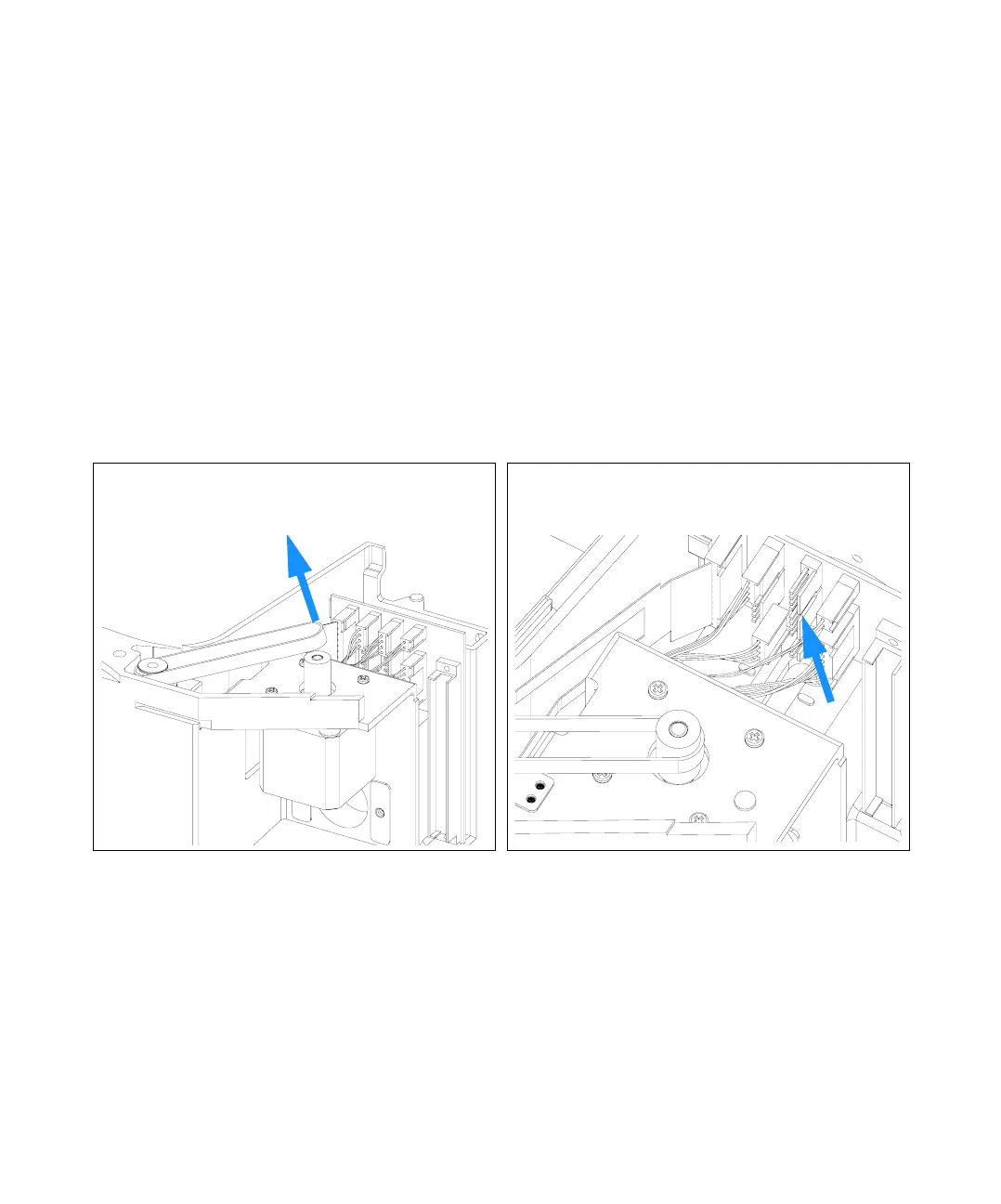

1 Lift away the drive belt. 2 Disconnect the motor connector from the SUD board
(labelled “Needle M”).
