Installing the Autosampler 1
3 Install the LAN interface board in the sampler (if required), see “LAN
Communication Interface Board” on page 245.
4 Remove the adhesive tape which covers the front door.
5 Remove the front door and remove the transport protection foam.
6 Place the Autosampler on top of the Thermostat. Make sure that the
Autosampler is correctly engaged in the Thermostat locks.
7 Place the air channel adapter into the autosampler tray base. Make sure the
adapter is fully pressed down. This assures that the cold airstream from the
Thermostat is correctly guided to the tray area of the Autosampler.

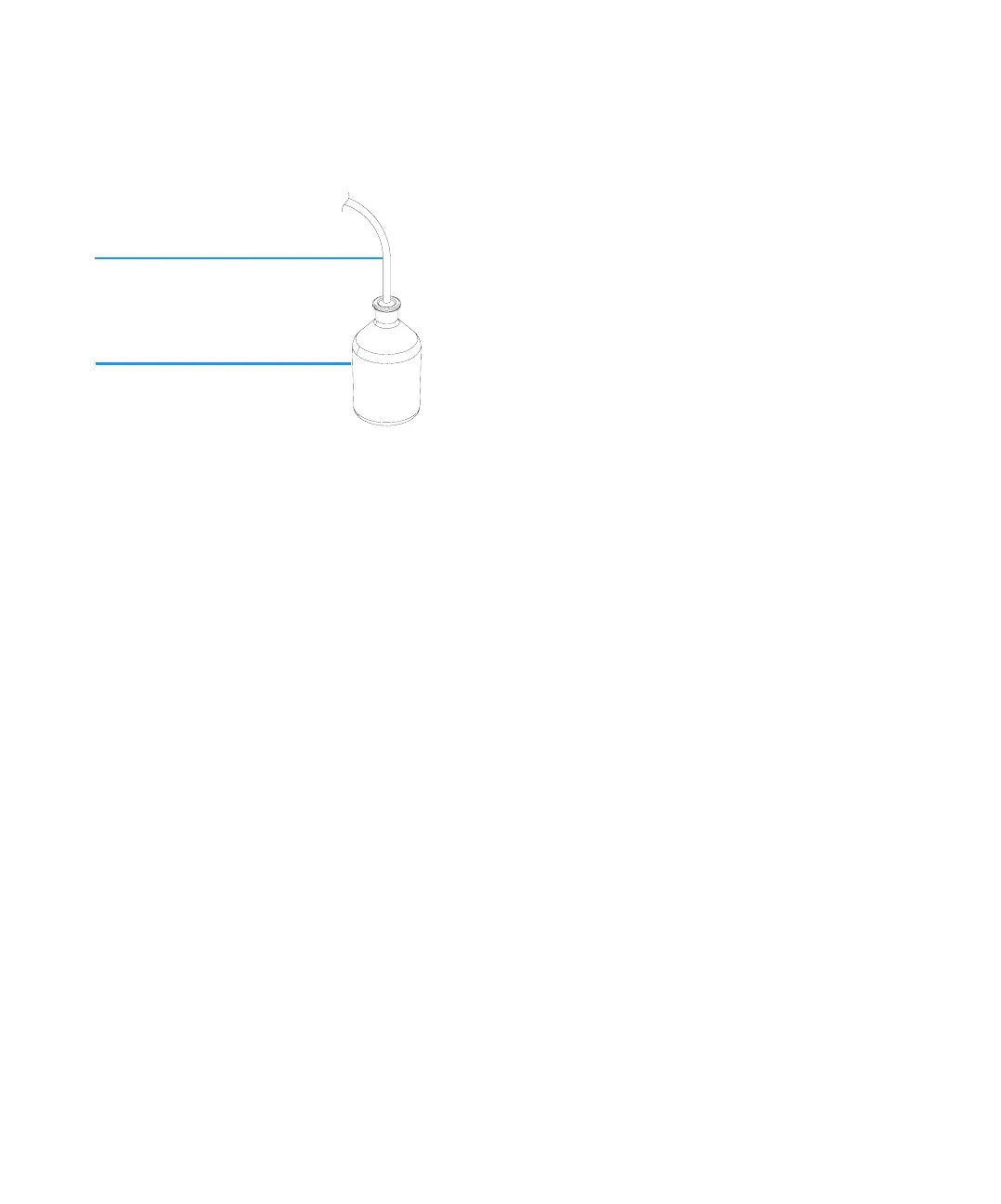

Figure 7 Condensation Leak outlet
Condensation drain tube
Waste bottle
