Agilent Technologies 1200 series - Exchanging the Optional Interface Board

Agilent 1200 Series Autosampler Reference Manual 131
Repairing the Autosampler 4
Interface Board
1 Switch OFF the autosampler at the main power switch.
2 Disconnect cables from the interface board connectors.
3 Loosen the screws. Slide out the interface board from the autosampler.
4 Install the interface board. Secure the screws.
5 Reconnect the cables to the board connectors
Frequency At installation or when defective.
Tools required Flat-head screwdriver.
Parts required Interface board, see “Optional Interface Boards” on page 243.
CAUTION
The interface board is sensitive to electrostatic discharge. Always use the ESD strap
when handling electronic boards.

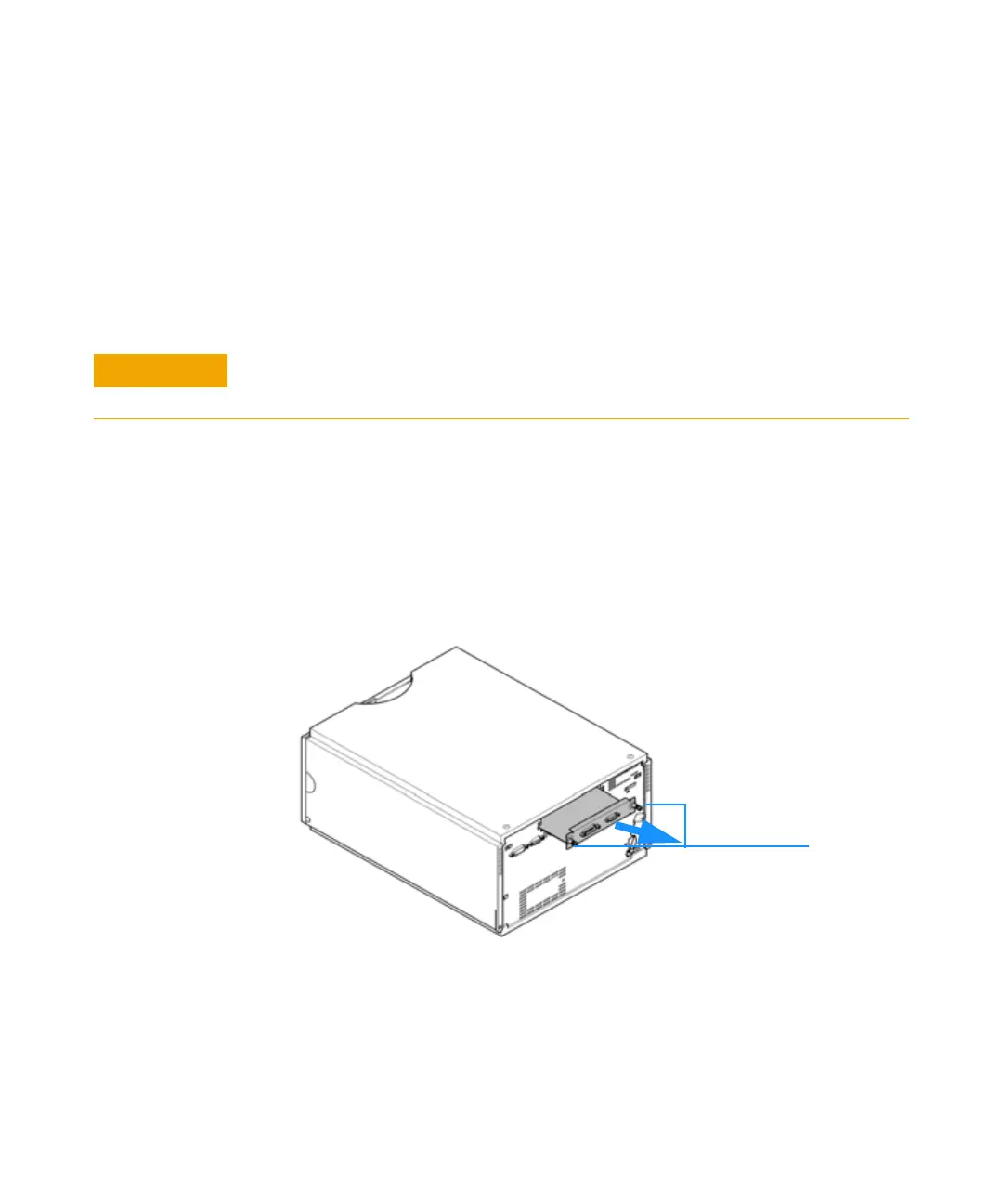

Figure 16 Exchanging the Interface Board
Screws
