1290 Infinity Quaternary Pump User Manual 15
Introduction
1
Positions of the Multi Purpose Valve
Purge Mode
In purge mode, the flow is diverted to the waste container.

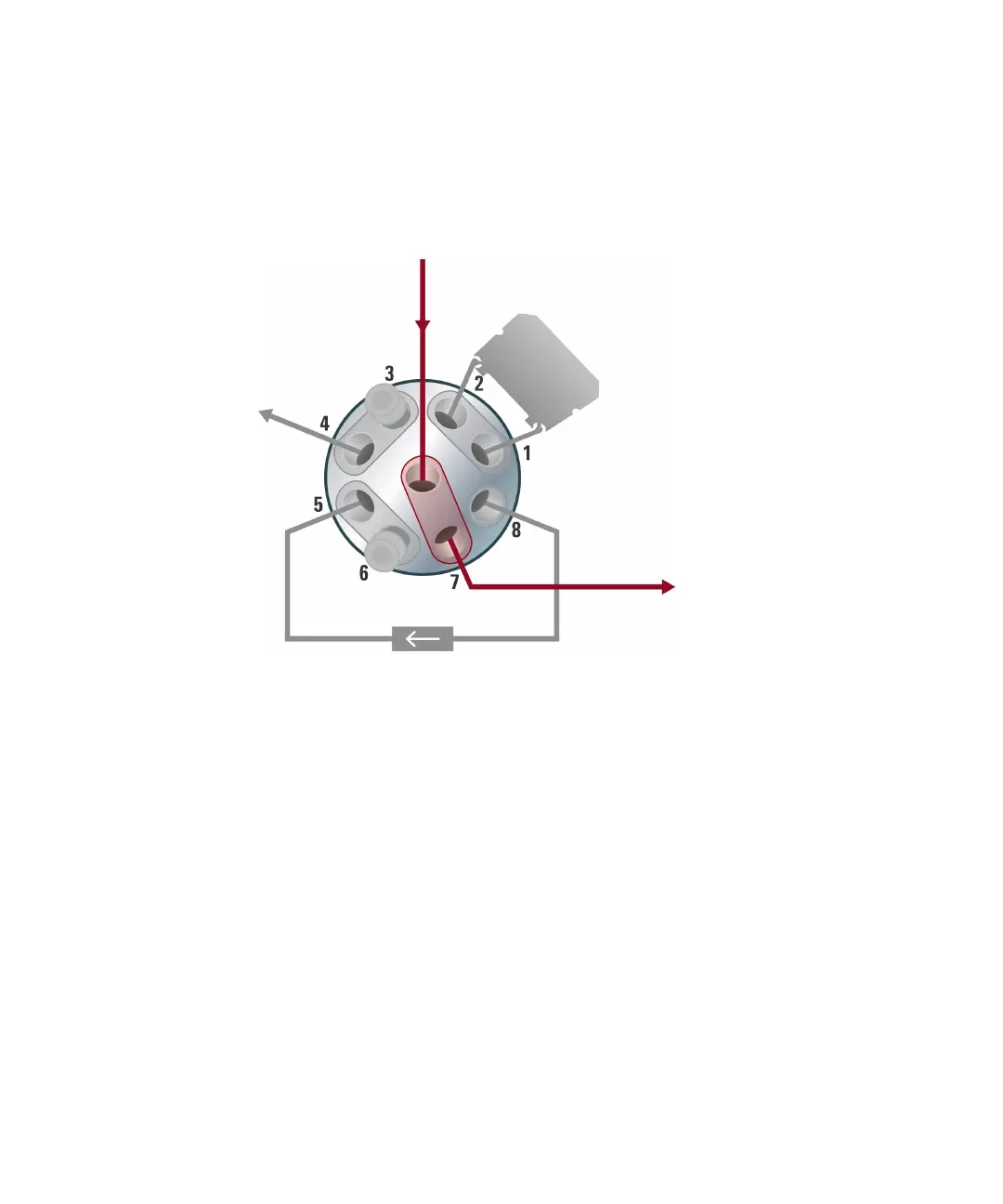

Figure 3 Valve position in purge mode
)URPSXPS
7RZDVWH
