Installing the Module
3

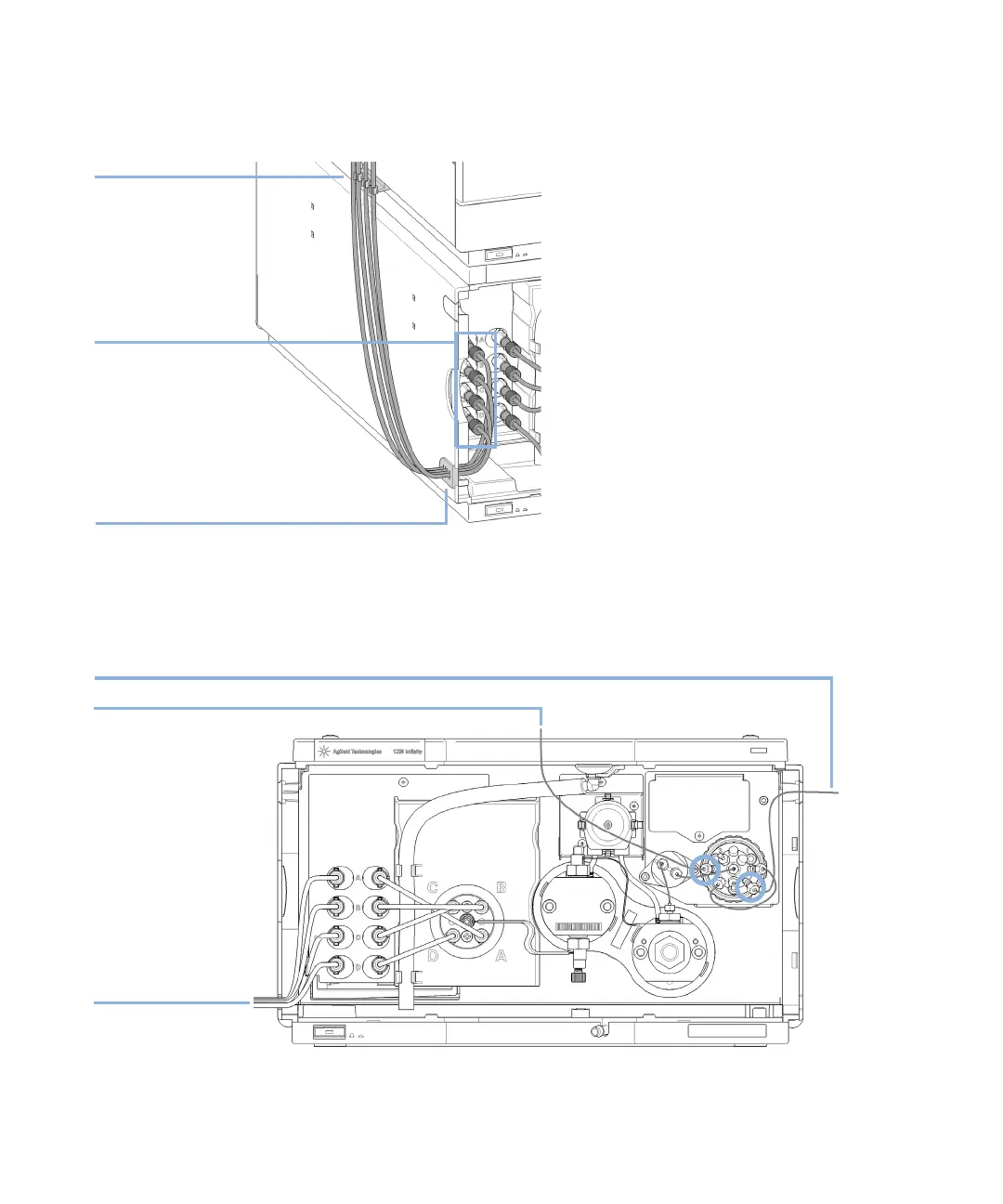

Flow Connections to the Pump
6 Connect the capillary from the autosampler to port 4 of the Multi Purpose
Valve.
7 Connect the waste tubing to port 7 of the Multi Purpose Valve and place it
in your waste system.
