© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-18
Chapter 1: MS Windows System Installation Procedure: Preparing the Testhead
Preparing the
Testhead
This section contains:
■ Install the Footswitch, 1-18
■ Install the Probe and Probe Cradle, 1-19
■ Install the Fixture Pull-Down Label -- Non-English
Only, 1-19
■ Attach the Site LAN Cable, 1-20
Install the Footswitch
NOTE
With software revision 3070 05.20p and later, the
footswitch must be connected to the system. The
footswitch must be pressed to lock fixtures on the
testhead.
1 Locate the footswitch and cable that are coiled on the
front of the testhead cradle.
See Figure 1-6 for locations.
2 Unpack the footswitch and place it on the floor in
front of the testhead.

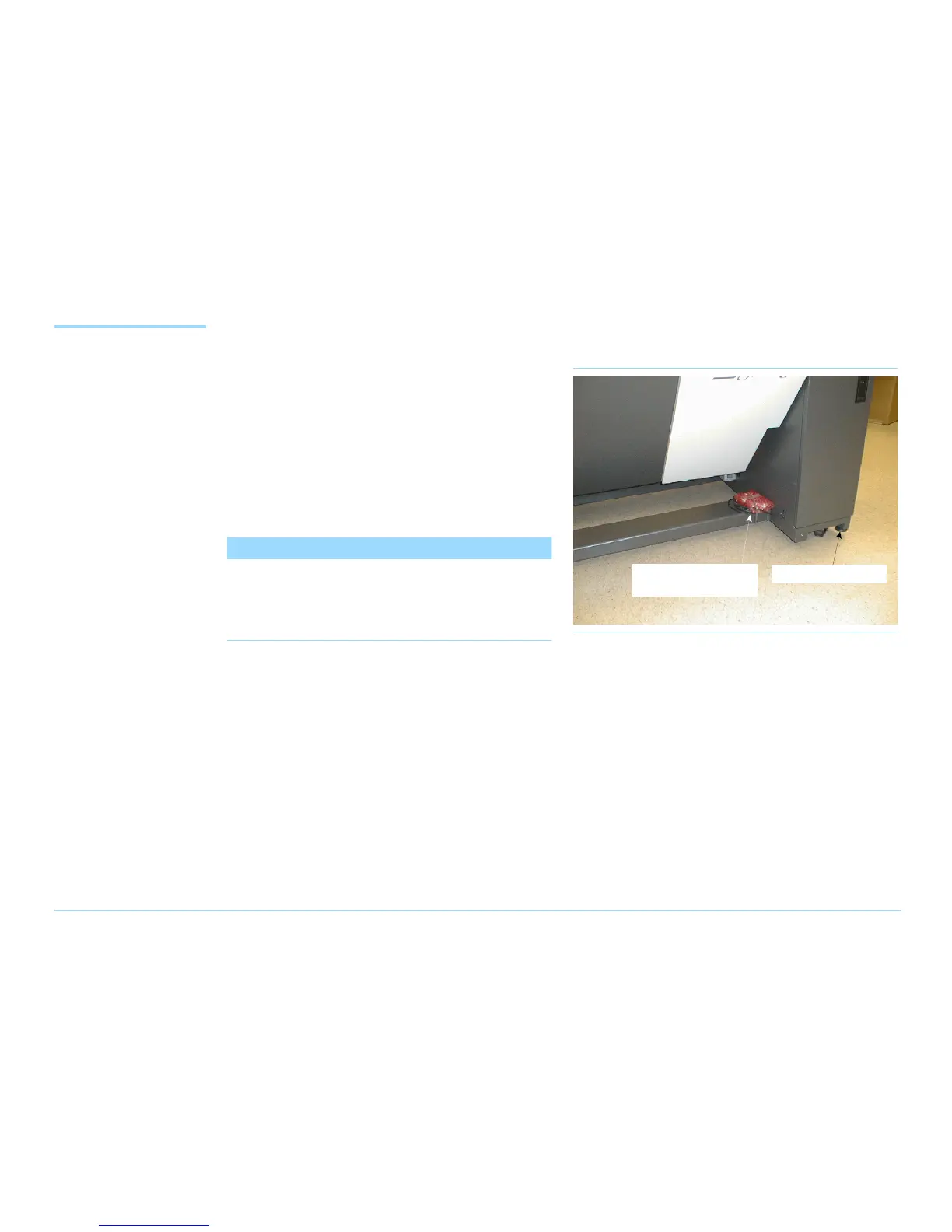

Figure 1-6 Location of the footswitch and leveling foot
Footswitch Cable coiled
under front of testhead
Testhead Leveling Foot
