Chapter 1: MS Windows System Installation Procedure: Setting-Up Other Hardware

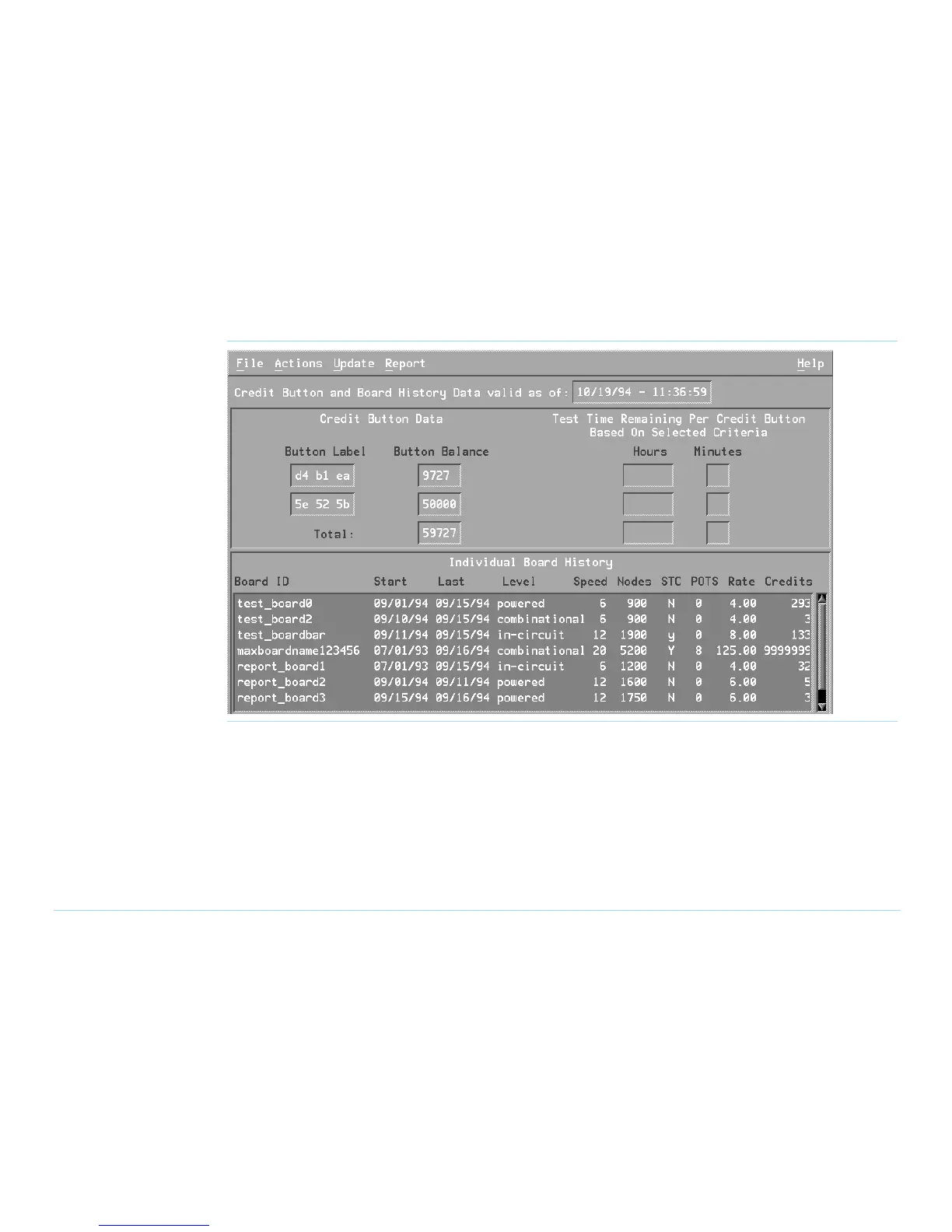

Figure 1-12 PPU report
Setup the Testhead for Automation
If a piece of automation equipment is being installed on
top of the testhead:
1 Shut down the testhead.
2 Rotate the testhead to the normal position, then
install the shipping bolts to keep it from being rotated
(see Figure 1-1 on page 1-11 for shipping bolt
locations).
3 Screw the testhead leveling feet down to the floor to
stabilize the testhead (see Figure 1-6 on page 1-18).
Also install floor brackets to keep the testhead stable.
If you don’t have a floor bracket kit, order Agilent
44990-63221. Installation instructions accompany
the kit.
