Chapter 1: MS Windows System Installation Procedure: Installing a Support Bay and Instrument Rack

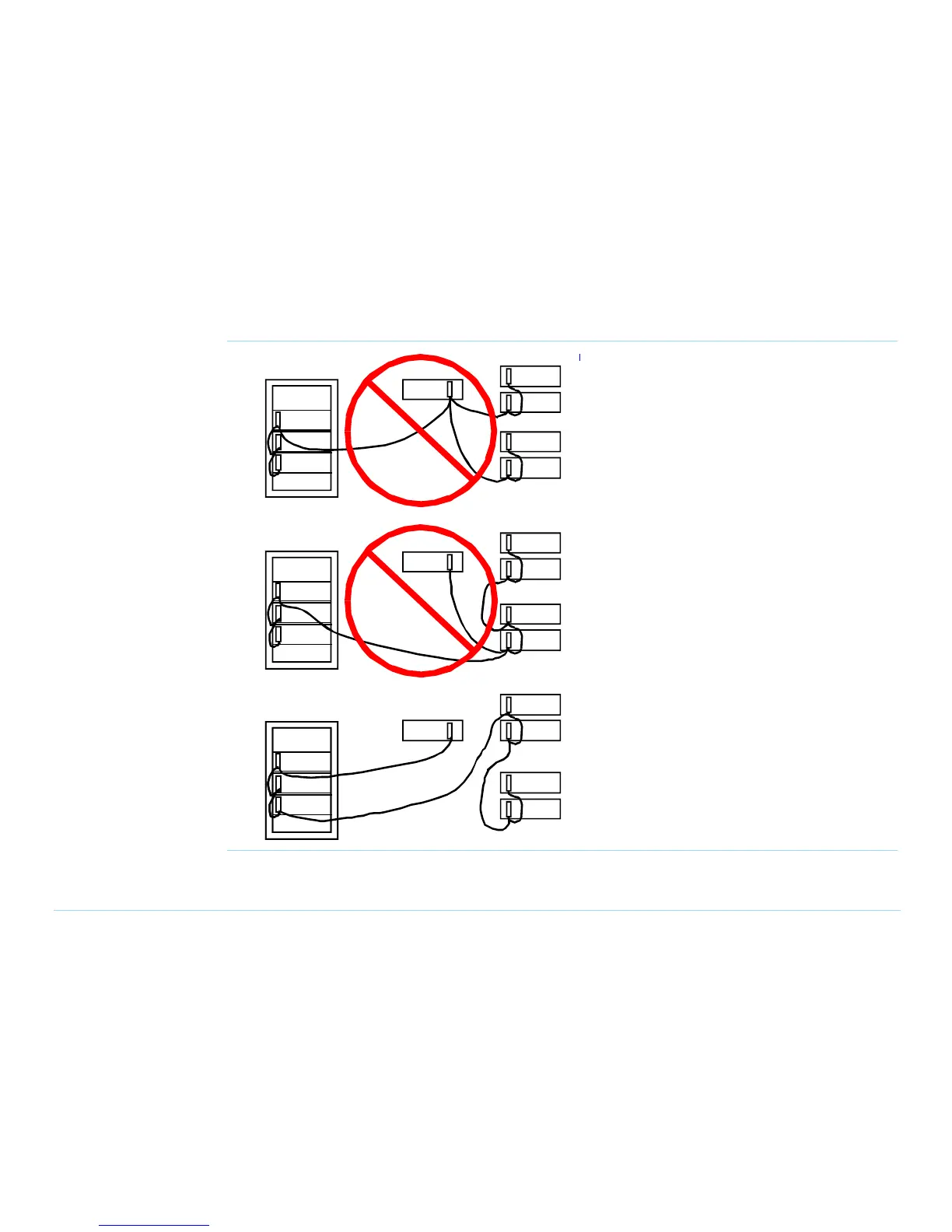

Figure 1-9 GPIB cables to an instrument rack, support bay, and controller. DO NOT allow the GPIB cabling to fork
Instrument Rack
Controller
Instrument Rack
Controller
Instrument 1
Instrument 2
VXI
Mainframe
Instrument Rack
Controller
YES - 3070
NO
NO
External Instruments
in the Support Bay or
Testhead
DUT Supplies in the
Support Bay or
Testhead
External Instruments
in the Support Bay or
Testhead
DUT Supplies in the
Support Bay or
Testhead
External Instruments
in the Support Bay or
Testhead
DUT Supplies in the
Support Bay or
Testhead
Instrument 1
Instrument 2
VXI
Mainframe
Instrument 1
Instrument 2
VXI
Mainframe
Instrument 1
Instrument 2
VXI
Mainframe
