Remove Servo Motor

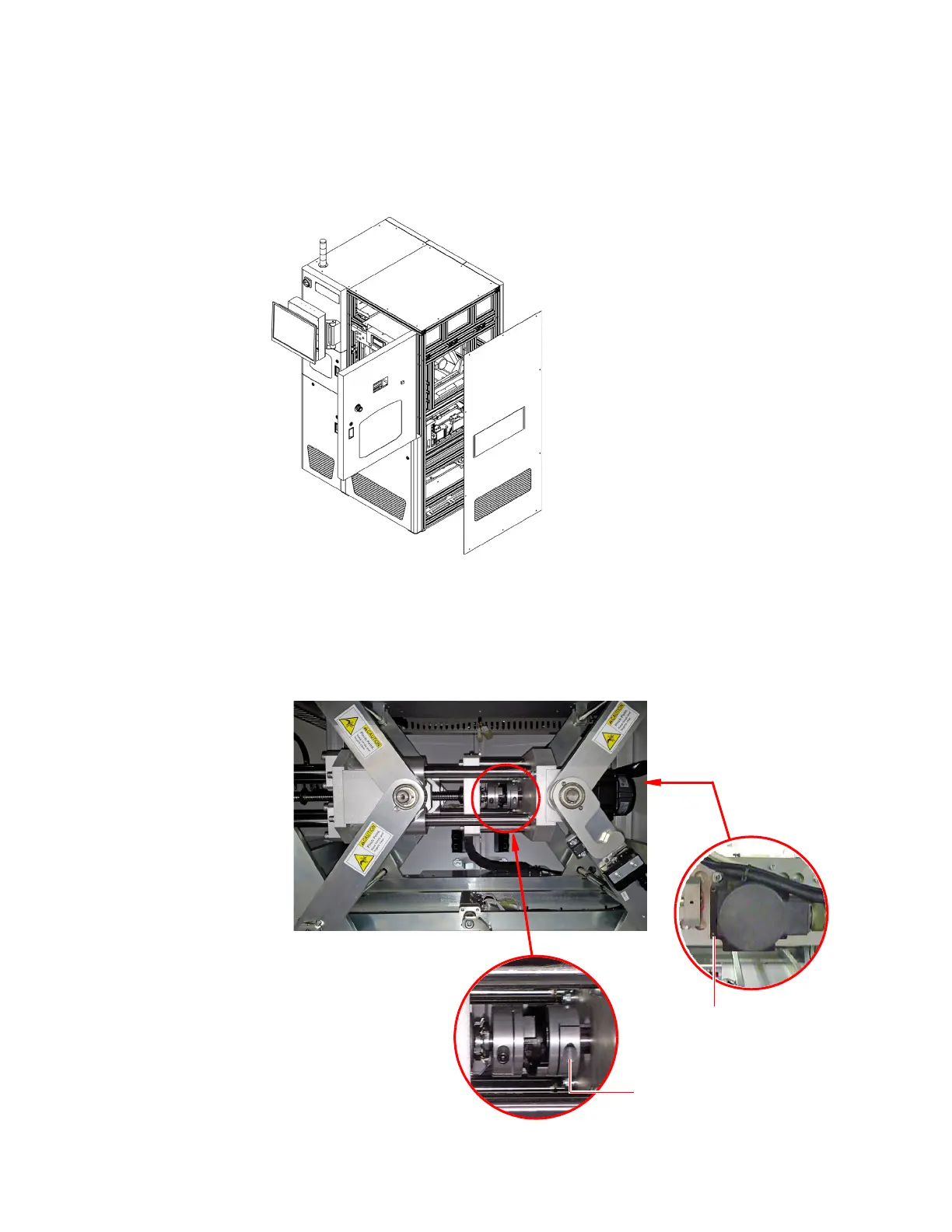

1 Open the Zone 2 door and remove the side cover.
2 Remove the Press servo motor:
a Loosen the screw that secures the coupling to the motor shaft.
b Unplug the electrical connectors.
c Remove four screws securing the servo motor. The motor can now be
removed.
Screw
Screw
