6-6 i3070 Series 5i Help
Troubleshooting
1 Check that the air supply is turned on.
2 Check the top fixture’s lock/unlock cylinder and replace if faulty.
3 Check the top fixture’s lock reed switch (RS-3). It should turn on
when the top fixture is locked. Replace if faulty.
1 Check that the air supply is turned on.
2 Check the top fixture’s locking cylinder and replace if faulty.
3 Check the top fixture’s unlock reed switch (RS-4) and replace if
faulty.
1 Check that the air supply is turned on.
2 Check the bottom fixture’s clamping cylinders and replace if faulty.
3 Check the bottom fixture clamp’s lock reed switches (front right
RS-5, front left RS-7, rear right RS-9, rear left RS-11).
They should turn on when the bottom fixture is locked. Repalce if
faulty.
1 Check that the air supply is turned on.
2 Check the bottom fixture’s clamping cylinders and replace if faulty.
3 Check the bottom fixture clamp’s unlock reed switches (front right
RS-6, front left RS-8, rear right RS-10, rear left RS-12).
They should turn on when the bottom fixture is unlocked. Repalce if
faulty.
For systems with optional barcode reader in use.
• Check the Scanner's feedback to PLC.
• Check the controller's feedback to PLC.
A board cannot be present when setting the conveyor width via the
LCD touch panel. Remove the board before setting the width.
• Check the Press origin sensor (PHS-14) and replace if faulty.
The servo motor’s brake did not release within the preset time.
• Restart the system.
The drawer is not in the lowered position.
• Check the Right Drawer Down sensor (PHS-21).
• Lower the drawer.

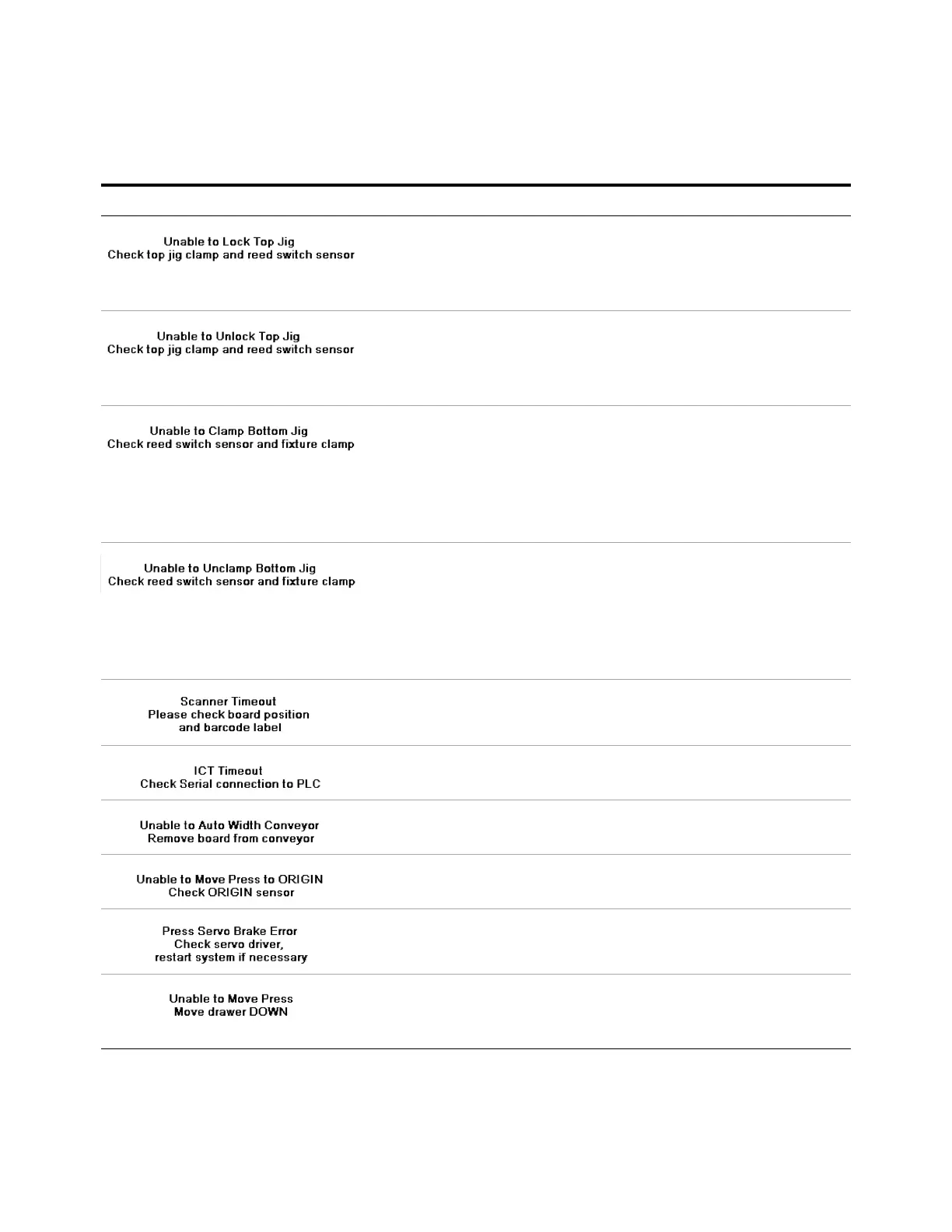

Table 6- 2 Error Messages
Error Message Cause/Action
