PNA Series Microwave Network Analyzers Replaceable Parts
E8361A Replaceable Parts Listings
Rear Panel Assembly, All Options

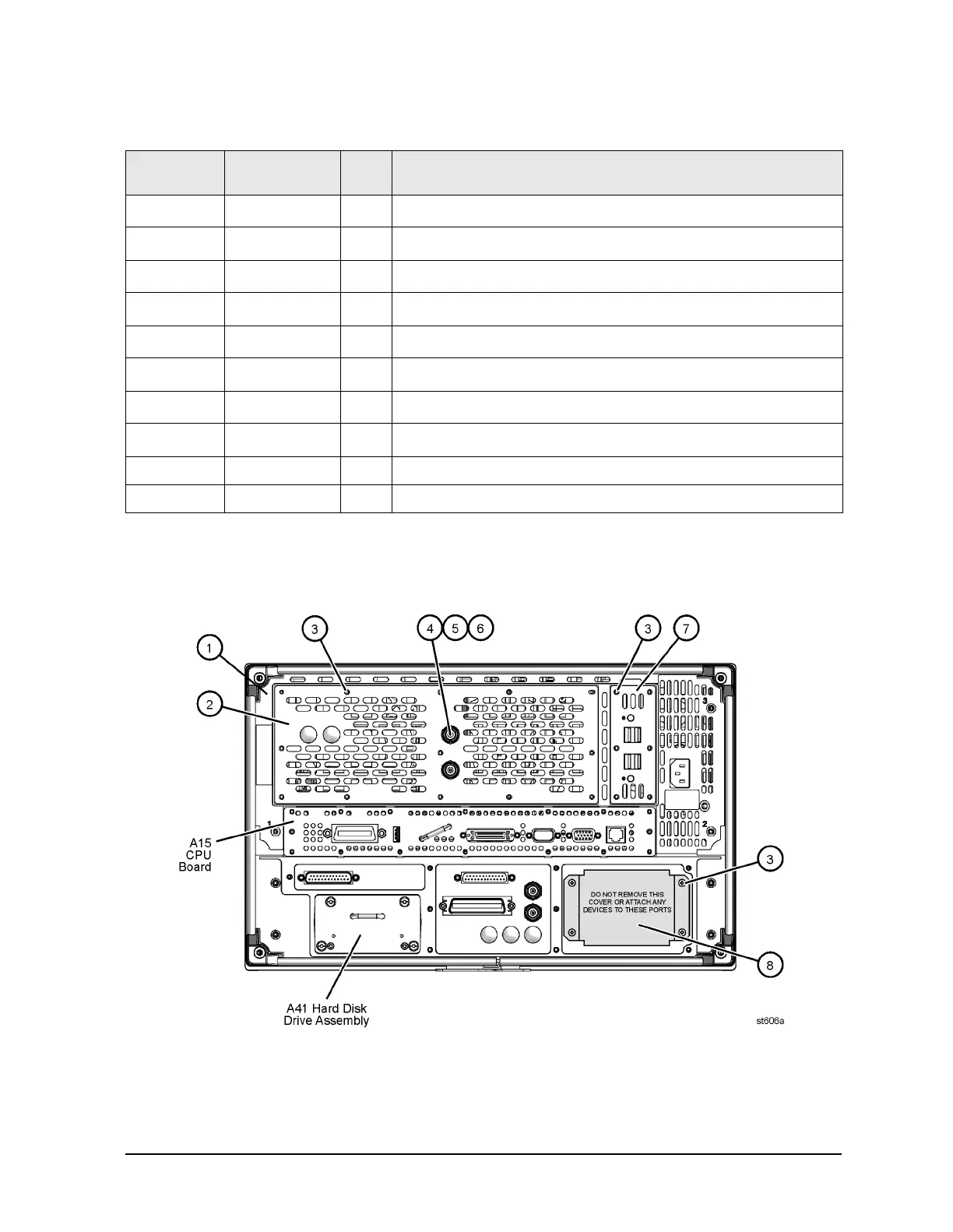

Figure 6-16 Rear Panel Assembly, All Options
Item
Number
Part
Number
Qty Description
➀
E8364-20117 1 Rear frame assembly (includes items 2-6)
➁
E8356-00023 1 Cover plate, large
➂
0515-0372 20 Machine screw, M3.0 x 8, CW-PN-TX
➃
8120-5055 2 BNC cable assembly
➄
2950-0035 2 Hex nut for BNC connector
➅
2190-0102 2 Lock washer for BNC connector
➆
E8356-60202 1 USB hub, 4 ports
➇
E8364-00009 1 Cover, bias connectors and fuse holders
E8364-60095 1 Hard disk drive stationary board (not shown)
E8364-00007 1 Hard disk drive stationary bracket (not shown)
