PNA Series Microwave Network Analyzers Troubleshooting
E8361A Getting Started with Troubleshooting
Troubleshooting Organization
Follow the flowgraph in Figure 4-1 to help direct you to the correct section for
troubleshooting the analyzer.

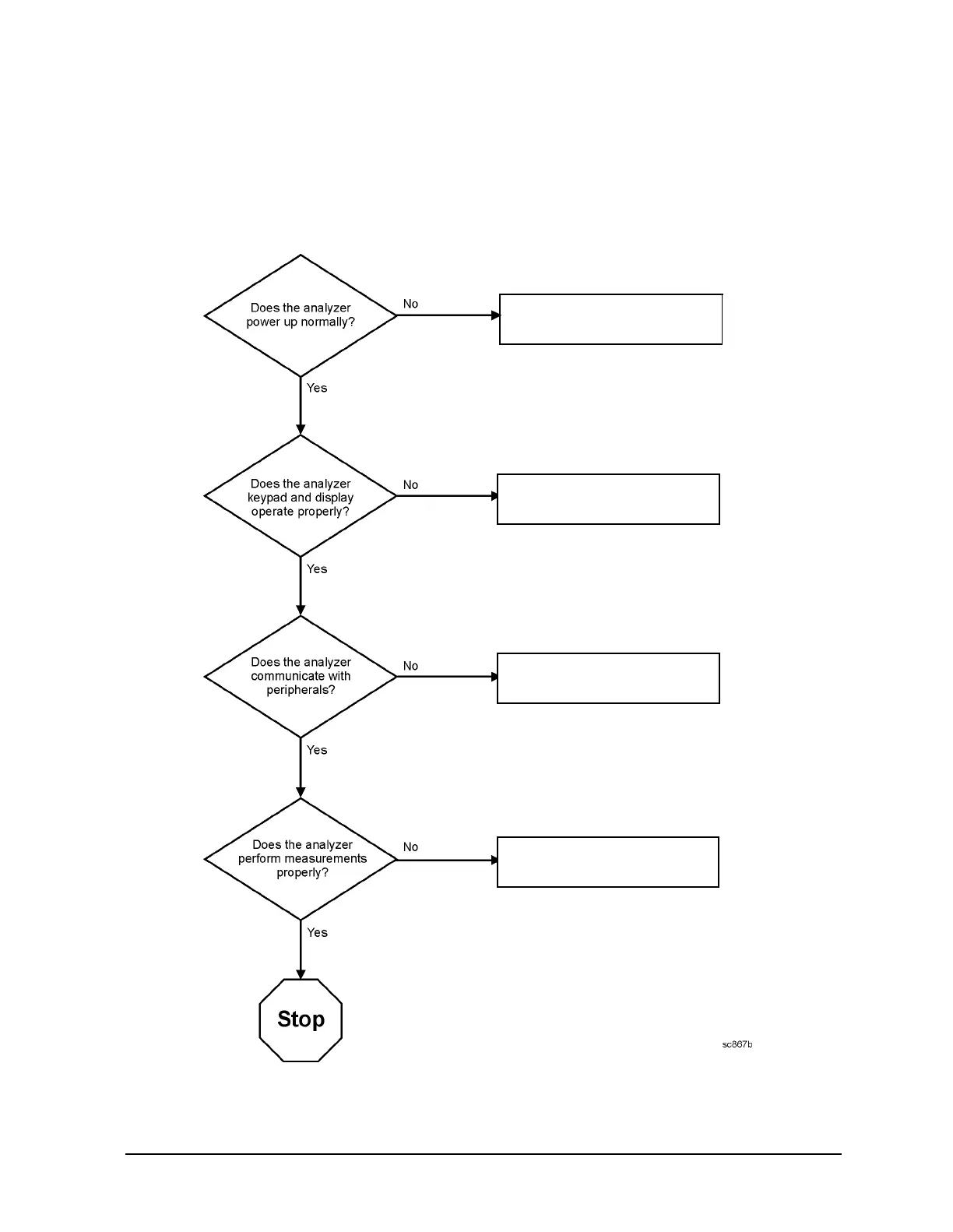

Figure 4-1 Troubleshooting Organization Flowchart
Go to “Power Up Troubleshooting”
on page 4-6.
Go to “Front Panel Troubleshooting”
on page 4-17
.
Go to “Rear Panel Troubleshooting”
on page 4-21
.
Go to “Measurement System
Troubleshooting” on page 4-28
.
