Service Guide E8361-90001 3-9
PNA Series Microwave Network Analyzers Tests and Adjustments
E8361A Non-ANSI/NCSL Z540–1–1994 Verification
Non-ANSI/NCSL Z540–1–1994 Verification
For non-ANSI/NCSL Z540-1-1994, perform the preliminary checks and either the system
verification or performance tests while stopping to troubleshoot. Refer to Figure 3-2 for test
flow. Troubleshoot and repair the first problem encountered without continuing to other
tests. After you troubleshoot, repair, and adjust, repeat the last failed portion and generate
a new set of data. Print out the system verification results or complete the performance
test record as the analyzer passes each test.

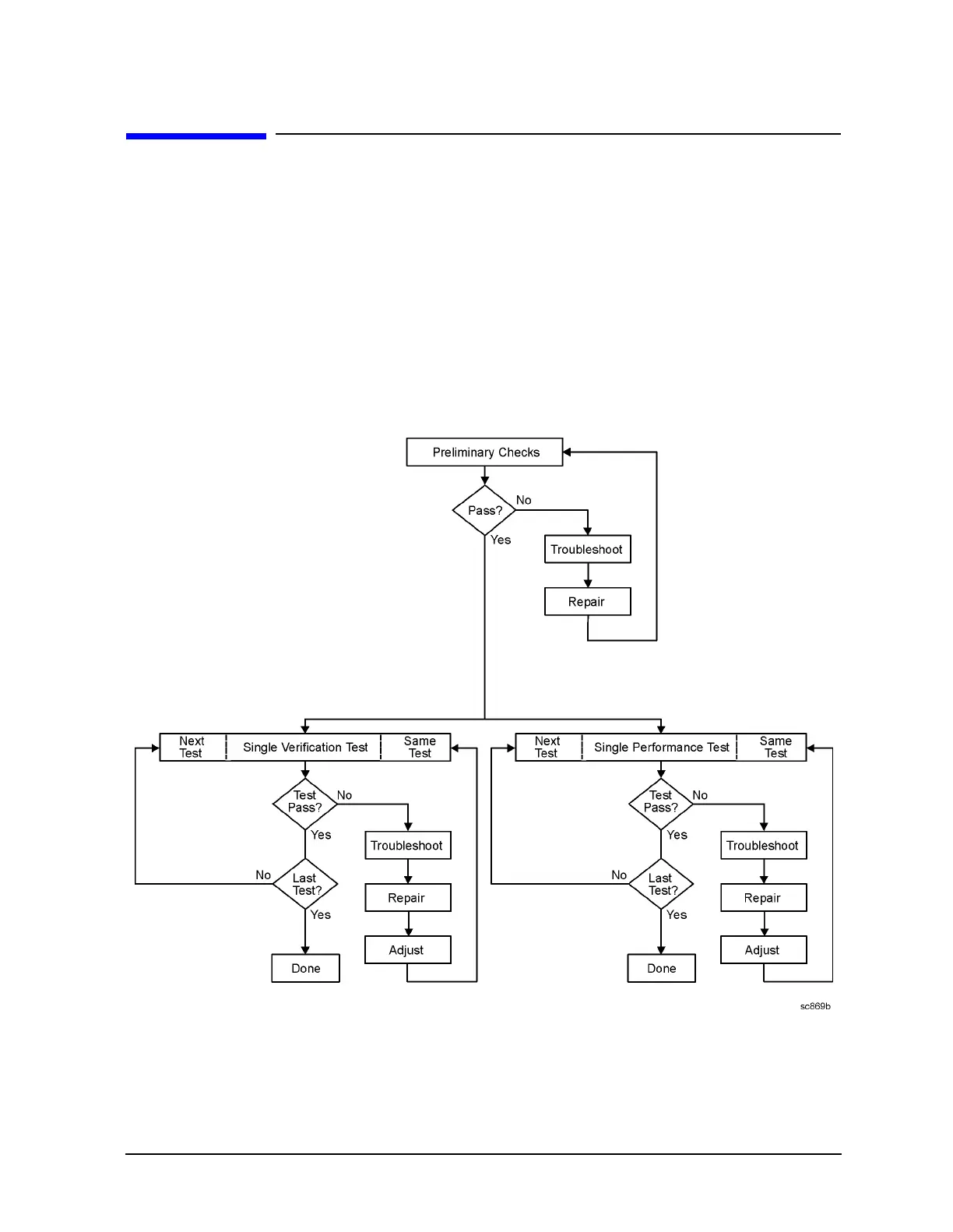

Figure 3-2 Non–ANSI/NCSL Z540–1–1994 Test Path Verification Flowchart
