Agilent Technologies PNA Series User Manual

Service Guide E8361-90001 7-13
PNA Series Microwave Network Analyzers Repair and Replacement Procedures
E8361A Removing and Replacing Front Panel Subassemblies
Replacement Procedure
NOTE When replacing the assemblies, ensure that the ribbon cables are not under
the assemblies.
1. Reverse the order of the removal procedure.
2. Perform the post-repair adjustments, verifications, and performance tests that pertain
to this removal procedure. Refer to Table 7-2 on page 7-66.

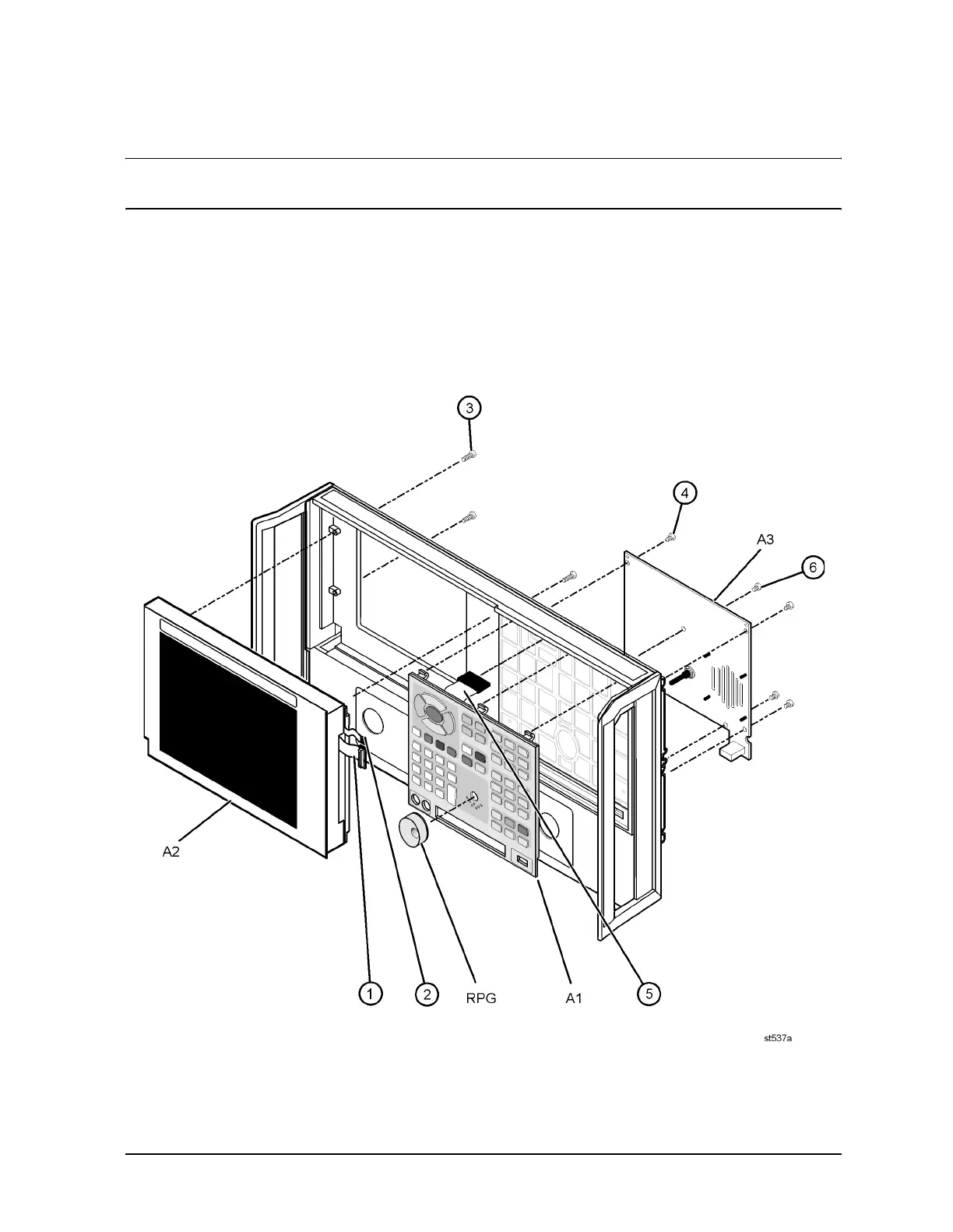

Figure 7-4 Front Panel Subassemblies Removal
