3-16 Service Guide E8361-90001
Tests and Adjustments PNA Series Microwave Network Analyzers
Preliminary Checks E8361A

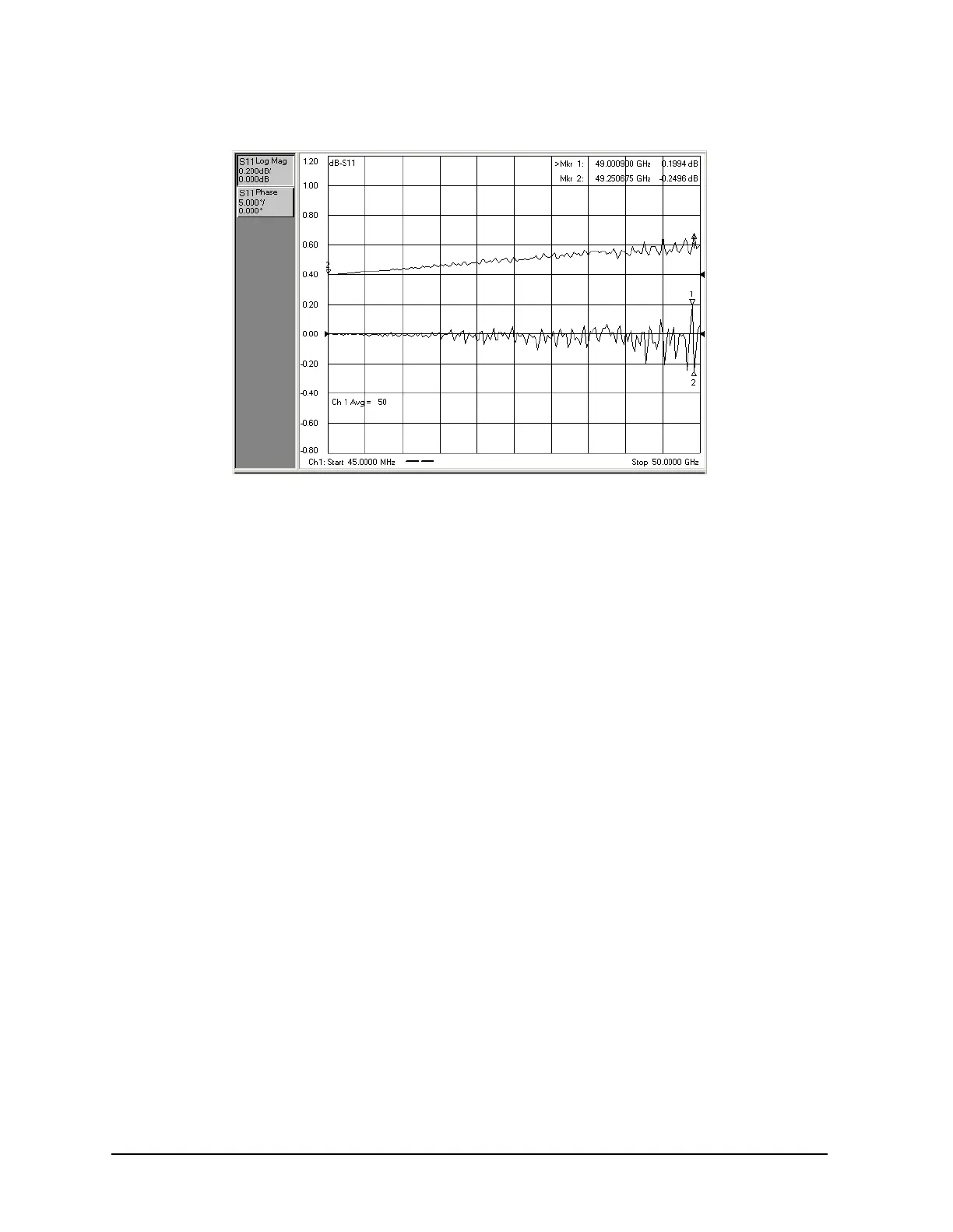

Figure 3-6 Typical Cable Magnitude and Phase Stability Response
If the Cable Magnitude and Phase Stability Check Fails
1. Clean the cable and devices and torque to specification. Repeat the check.
2. If the check still fails, the cable should be repaired or replaced.
